Dahua A22AM9Z

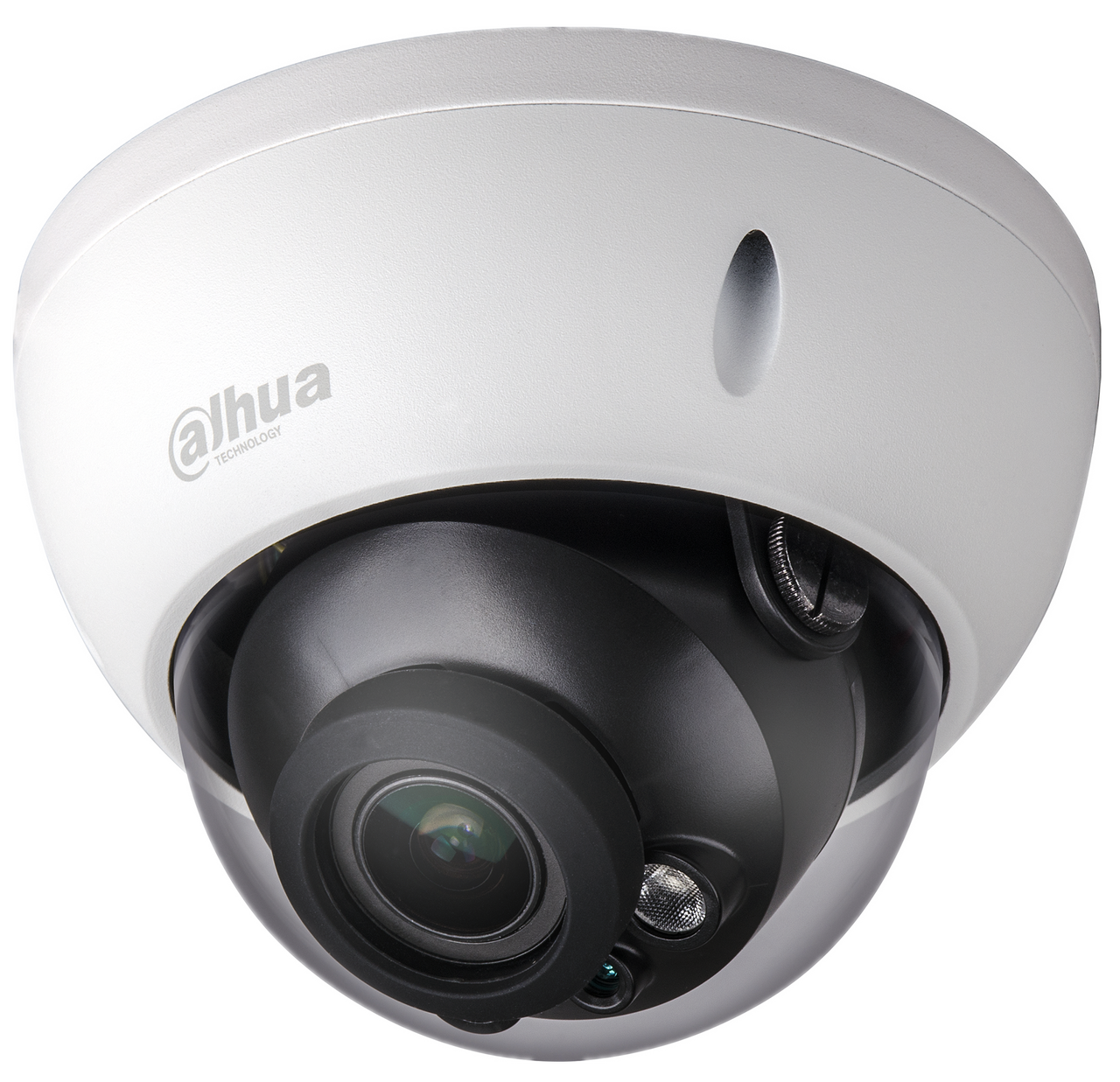

Dahua A22AM9Z 2MP WDR Vari-focal Multi-Format Dome Camera

Dahua

Dahua A22AM9Z 2MP WDR Vari-focal Multi-Format Dome Camera

Sale price$172.80
SKU: DUA-A22AM9Z Pro
Quantity:

Contact

Discontinued - Recommended Replacement Dahua A21CM0Z

Dahua A22AM9Z Features

  • Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI

Camera

  • Image Sensor 1/2.8-in. CMOS
  • Effective Pixels 1937(H) x 1097(V), 2.1 MP
  • Scanning System Progressive
  • Electronic Shutter Speed 1/30 s to 1/100000 s
  • Minimum Illumination Color: 0.005 Lux at F1.3, 30 IRE, 0 Lux (with IR on)
  • S/N Ratio More than 65 dB
  • IR Distance Up to 30 m (98.43 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs Two (2)

Lens

  • Lens Type Motorized Lens / Fixed Iris
  • Mount Type Board-in
  • Focal Length 2.7 mm to 13.5 mm
  • Max Aperture F1.3
  • Horizontal Angle of View 102° to 29°
  • Focus Control Auto, Manual
  • Close Focus Distance 200 mm (7.87 in.)

Pan / Tilt / Rotation

  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotation: 0° to 355°

Video Transmission

  • RG-59/U Coax 720p: 800 m (2624.67 ft), 1080p: 500 m (1640.42 ft)
  • RG-6/U Coax 720p: 1200 m (3937.01 ft), 1080p: 800 m (2624.67 ft)
  • CAT 6 UTP (balun required) 720p: 450 m (1476.38 ft), 1080p: 300 m (984.25 ft)

Video

  • Resolution 2 MP (1920 x 1080)
  • Frame Rate 2 MP at 30 fps, 720p at 30 fps
  • Video Output One (1) BNC HDCVI High-definition Channel, orOne (1) BNC CVBS, AHD, or TVI Channel, switchable
  • Day/Night Auto (ICR), Manual
  • OSD Menu Multi-language
  • BLC Mode BLC, HLC, WDR
  • WDR True WDR (120 dB)
  • Gain Control AGC
  • Noise Reduction 2D/3D
  • White Balance Auto, Manual
  • Smart IR Auto, Manual

Certifications

  • Safety UL60950-1+CAN/CSA C22.2 No.60950-1
  • Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014

Electrical

  • Power Supply 24 VAC ±25% or 12 VDC ±25%
  • Power Consumption Maximum 8 W (at 12 VDC with IR on)

Environmental

  • Operating Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
  • Initiate startup above -40° C (-40° F)
  • Storage Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
  • Ingress Protection IP67
  • Vandal Resistance IK10

Construction

  • Casing Aluminium
  • Dimensions 122.0 mm x 88.90 mm (4.80 in. x 4.13 in.)
  • Net Weight 0.48 kg (1.06 lb)
  • Gross Weight 0.63 kg (1.39 lb)
