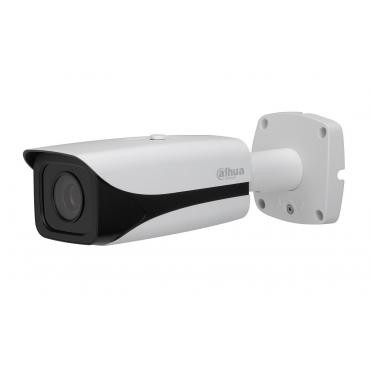

Dahua DH-HAC-HFW32A1EN-Z 2MP IR Vari-focal Starlight HDCVI Bullet Camera
Dahua DH-HAC-HFW32A1EN-Z 2MP IR Vari-focal Starlight HDCVI Bullet Camera

Dahua

Dahua DH-HAC-HFW32A1EN-Z 2MP IR Vari-focal Starlight HDCVI Bullet Camera

Sale price$257.38
SKU: DH-HAC-HFW32A1EN-Z
Quantity:

Contact

Dahua DH-HAC-HFW32A1EN-Z Features

Camera

  • Image Sensor 1/2.8" CMOS
  • Effective Pixels 1945 (H) × 1097 (V), 2.1MP
  • Scanning System Progressive
  • Electronic Shutter Speed 1~1/30,000s
  • Minimum Illumination 0.005Lux/F1.4, 0Lux IR on
  • S/N Ratio More than 65dB
  • IR Distance IR distance Up to 100m (330 feet)
  • IR On/Off Control Auto
  • IR LEDs 4

Lens

  • Lens Type Motorized / Auto Iris
  • Mount Type Board-in
  • Focal Length 2.7mm ~ 12mm
  • Max Aperture F1.4
  • Angle of View 95° ~ 36°
  • Focus Control Motorized
  • Close Focus Distance 50mm ~ 270mm (1.97''~ 10.63'')
  • Pan/Tilt/Rotation Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°

Video

  • Resolution 1080p (1920×1080)
  • Frame Rate 30fps@1080p
  • Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS standard definition video output
  • SD tester out
  • Day/Night Auto (ICR)
  • BLC Mode BLC
  • White Balance AWB
  • Gain Control AGC
  • Noise Reduction 2D/3D
  • WDR 120dB
  • Smart IR Auto
  • Certifications FCC, UL

Eelectrical

  • Power Supply 12V DC ±25%/24V AC ±25%
  • Power Consumption Max 16.6W (12V DC, IR on)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • * Start up should be done at above -30°C (-22°F)
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection & Vandal Resistance IP67, IK10

Construction

  • Casing Aluminium
  • Dimensions Φ273.2mm × 95.0mm (Φ10.76" × 3.74")
  • Net Weight 1.2kg (2.65lb)
  • Gross Weight 1.5kg (3.31lb)
