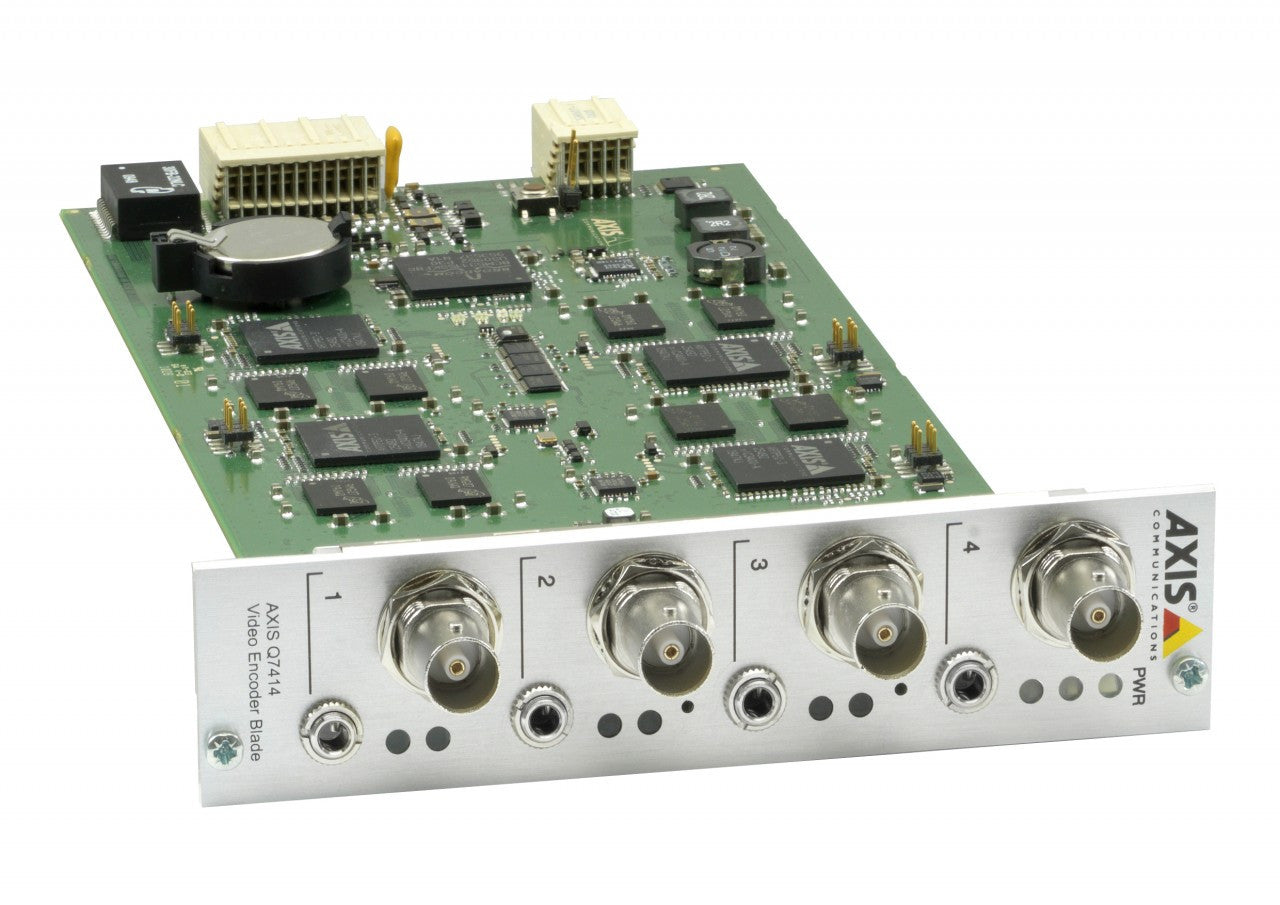

AXIS Q7414 (0354-001) Video Encoder Blade
AXIS Q7414 (0354-001) Video Encoder Blade
AXIS Q7414 (0354-001) Video Encoder Blade
AXIS Q7414 (0354-001) Video Encoder Blade
AXIS Q7414 (0354-001) Video Encoder Blade
AXIS Q7414 (0354-001) Video Encoder Blade


AXIS Q7414 (0354-001) Video Encoder Blade

Sale price$1,149.00
SKU: Q7414 (0354-001)

AXIS Q7414 Features

  • Resolution: NTSC: 720x480 (D1) to 176x120 (QCIF); PAL: 720x576 (D1) to 176x144 (QCIF); 30/25 (NTSC/PAL) fps in all resolutions
  • Channels: 4
  • Video Compression: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profile Motion JPEG
  • Frame Rate: 30/25 (NTSC/PAL) fps, 15 fps in quad view in full resolution
  • Video Streaming: Multi-stream H.264 and Motion JPEG: 3 simultaneous, individually configured streams in max. resolution at 30/25 fps; more streams if identical or limited in frame rate/resolution, Controllable frame rate and bandwidth, VBR/CBR H.264
  • Image Settings: Compression, color, brightness, contrast, Rotation: 90°, 180°, 270°, Aspect ratio correction, Mirroring of images, Text and image overlay, Privacy mask, Enhanced deinterlace filter, Video termination, Anti-aliasing
  • Audio Streaming: Two-way
  • Audio input/output: External microphone input or line input (balanced or unbalanced) and line output (unbalanced), Phantom Power
  • Alarm/Event Management: Intelligent video, external inputs, video loss, audio detection, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, PTZ preset, External output activation, Play audio clip, Pre- and post-alarm video buffering
  • Pan/Tilt/Zoom: Wide range of analog PTZ cameras supported (drivers available for download at 100 presets/camera, guard tour, PTZ control queue. Supports Windows compatible joysticks
  • ONVIF: Yes
  • Processing and Memory: 4x ARTPEC-3, 4x 256 MB RAM, 4x 128 MB Flash
  • Security: Password protection, IP address filtering, HTTPS* encryption,IEEE 802.1X* network access control, digest authentication, user access log
  • Connectors: 4 analog composite video BNC inputs; 4 3.5 mm jacks for mono microphone or line input (max. 6 Vpp); mono line output (typical 1.8 Vpp at 1 kohm); 10BASE-T/100BASE-TX/1000BASE-T Ethernet; 8 configurable external inputs/outputs; Up to 4 RS-485/RS-422 half duplex, depending on the rack
  • Dimensions: 129mm (W) x 30mm (H) x 300mm (L)
  • Weight: 229 g (0.50 lb.)
  • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Operating Humidity: Humidity 20-80% RH (non-condensing)
  • Power: 12 V DC, max. 13.0 W
  • What's Included: Installation Guide, CD with installation and management tools, software and Users Manual, Windows decoder user licenses
AXIS Q7414 Overview

AXIS Q7414 Video Encoder Blade is a four-channel blade for video encoder rack solutions, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system. The high-performance video encoder blade provides superb video quality, outstanding compression capabilities and two-way audio support. When AXIS Q7414 blades are used with AXIS Q7900 Rack, up to 56 analog cameras and audio channels can besupported in one 4U, 19-inch rack. AXIS Q7414 offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increasedflexibility.AXIS Q7414 can deliver multiple, individually configurable video streams from each channel at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The four audio channels deliver high-quality AAC streams, providing a compact and cost-effective solution for large installations that require two-way audio. In addition, the built-in phantom power source with adjustable input gain simplifies the installation of balanced microphones. The video encoder also enables users to adjust image settings such as contrast, brightness and saturation to improve images before encoding takes place. AXIS Q7414 offers intelligent capabilities such as enhanced video motion detection, active tampering alarm and audio detection. The encoder’s external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms and activate lights or open/close doors.
