Hanwha PWR-24AC-4-4UL 4-Camera 24VAC 4 Amp Power Supply

Hanwha PWR-24AC-4-4UL Features

• Input: 115VAC 50/60 HZ; 0.9 Amps
• Output: fuses are rated at 3 Amps - Four 24VAC individually fused outputs
• Fuse: 5 Amps - 4 Amps 100 VA supply current at 70°F
• Transformer: 110VAC/24VAC, 100VA
• Enclosure Dimensions: 254 x 228.6 x 114.3mm (10” x 9” x 4.5”)
• UL listed
• Convenient screw and terminal and fuse access
• Individual LED's for each fused output
• AC power LED indicator
• Power On/Off switch
• Double coated polyurethane finish
• Multiple knockouts to accommodate various wiring configurations
• Lockable heavy-gauge metal enclosure
• Uses easy-to-find automotive-style fuses
• Maintains camera synchronization
• Includes transformer and spare fuses

Hanwha PWR-24AC-4-4UL Overview

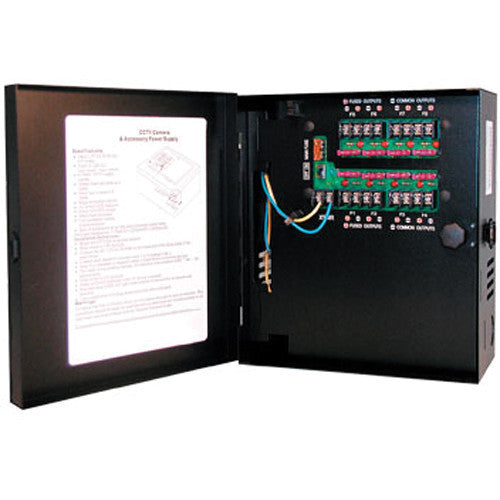

The Hanwha PWR-24AC-4-4UL 4-Camera 24VAC 4A Power Supply is a CCTV power center engineered to manage/remote camera and accessory power requirements. This distribution module is designed with four individually-fused outputs for powering up to four CCTV cameras and accessories. It provides 24VAC via distribution to four fused outputs with a total of 4A continuous supply current. It is housed in a lockable heavy-gauge metal enclosure.
