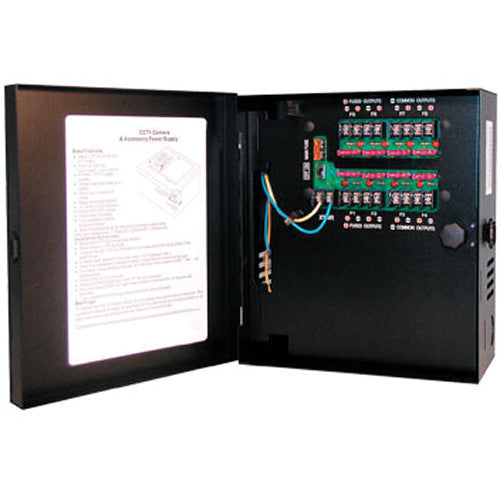

Hanwha PWR-24AC-8-4UL 8-Camera 24VAC 4 Amp Power Supply

Hanwha PWR-24AC-8-4UL Features

• Input: 115VAC 50/60 HZ; 0.9 Amps
• Output: fuses are rated at 5 Amps - Eight 24VAC individually fused outputs
• Fuse: 5 Amps - 4 Amps 100 VA supply current at 70°F
• Transformer: 110VAC/24VAC, 100VA
• Enclosure Dimensions: 254 x 228.6 x 114.3mm (10” x 9” x 4.5”)
• UL listed
• Convenient screw and terminal and fuse access
• Separation panel between transformers and output access
• Power ON/OFF switch
• Individual LED’s for each fused output
• Lockable heavy gauge metal enclosure
• Double coated polyurethane finish
• Multiple knockouts to accommodate various wiring configurations
• Uses easy to find automotive style fuses
• Includes transformer and spare fuses

Hanwha PWR-24AC-8-4UL Overview
The PWR-24AC-8-4UL is a UL listed CCTV power center engineered to manage remote camera and accessory power requirements. The PWR-24AC-8-4UL distribution module is designed with 8 individually fused outputs for powering up to 8 CCTV cameras and accessories. It will provide 24Volts AC via distribution to eight fused outputs with a total of 4.0 Amps continuous supply current. The PWR-24AC-8-4UL power center is housed in a premium heavy gauge metal enclosure.
