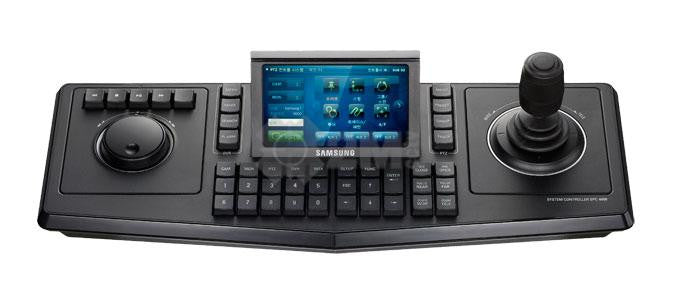

Hanwha SPC-6000 System Keyboard Controller

Hanwha SPC-6000 Features

• Interface: RS-485/422 (Operating distance 1km), TTL (Matrix)
• Data Port: 8-pin RJ-45 connector (Female) (RS-485 serial port) BNC (Video input, Loop through), USB 2.0 (F/W updatable)
• Protocol PTZ: Hanwha-T/E, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, ELMO, Bosch, GE
• Protocol DVR: SRD, SVR
• Dimensions: 459.0 x 59.0 x 178.0mm (18.07" x 2.32" x 7")
• Weight: 1.5Kg (3.3lb)
• LCD Display: 5" TFT touch LCD
• Joystick: 3 Axis twist zoom
• Jog Shuttle: DVR playback control
• Input Voltage-Current: 12V DC /4A
• Power Consumption: Max. 4W
• Operating Temperature: 0°C ~ 40°C
• Operating Humidity: 10 ~ 70% (Non-condensing)

Hanwha SPC-6000 Overview

The SPC-6000 is an ergonomically designed system controller for DVRs and individual PTZ dome cameras. It can be used in conjunction with 16 additional SPC-6000 units providing flexible expansion up to very large systems. The controller comes with a built-in 5” color LCD touch screen and a 3D joystick and jog shuttle which are detachable and interchangeable (right/left hand use).
