Vigitron Vi00103S NetMux™ STP Ethernet and PoE Port Multiplexer

• Connects two IP/PoE devices to a PoE switch using a single shielded Cat5/6 cable
• Provides up to 37W to each of 2 remote devices
• Reduces installation costs and time
• Indicates PoE presence at Camera side (TX unit)
• Compatible with IEEE 802.3af and IEEE 802.3at
• No power source required
• Low cost and easy to use
• Patented design

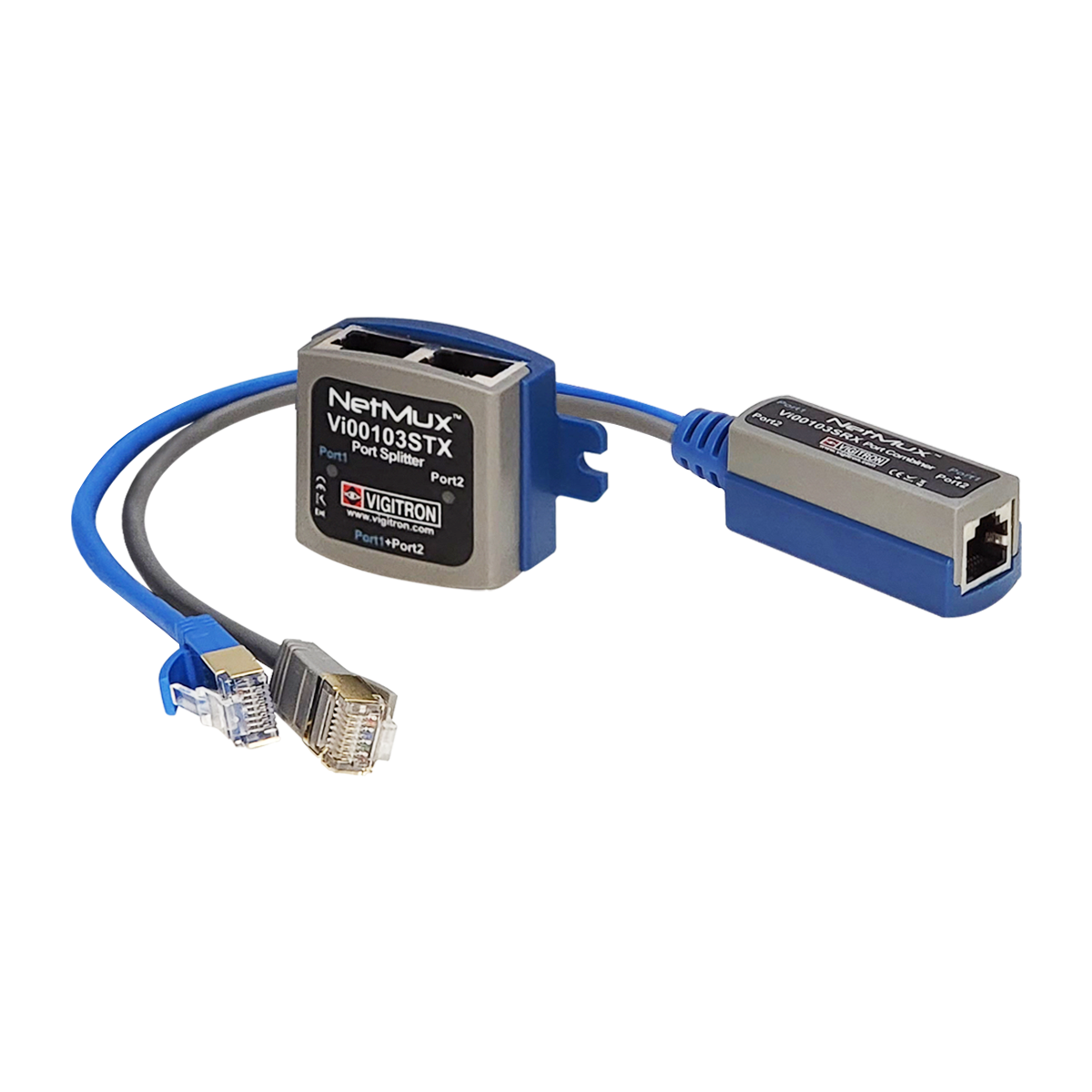

The NetMux™ Vi00103S port multiplexer enables connecting two IP/PoE devices using a single shielded Cat5/6 cable. It includes a port Combiner and a port Splitter. The Vi00103SRX combines two IP/PoE streams and transmits them through only one Cat5/6 shielded cable. It has two built-in 10 inch Cat 6 shielded pigtail cables to connect to the PoE switch. The Vi00103STX separates the combined signals and connects them to two ports of the IP/PoE devices such as IP cameras. It has two integrated LEDs to indicate of PoE status for each port.

The Vi00103S can handle PoE power of up to 37W for each connected device. The NetMux™'s innovative design is compact and easy to use. It is compatible with IEEE 802.af, IEEE 802.at and most non-standards POE systems up to 37W for 10/100 BASE-T environments.

The NetMux™ is patented and is a perfect solution for reducing installation costs or adding PoE cameras or other IP/PoE devices to an existing installation.
