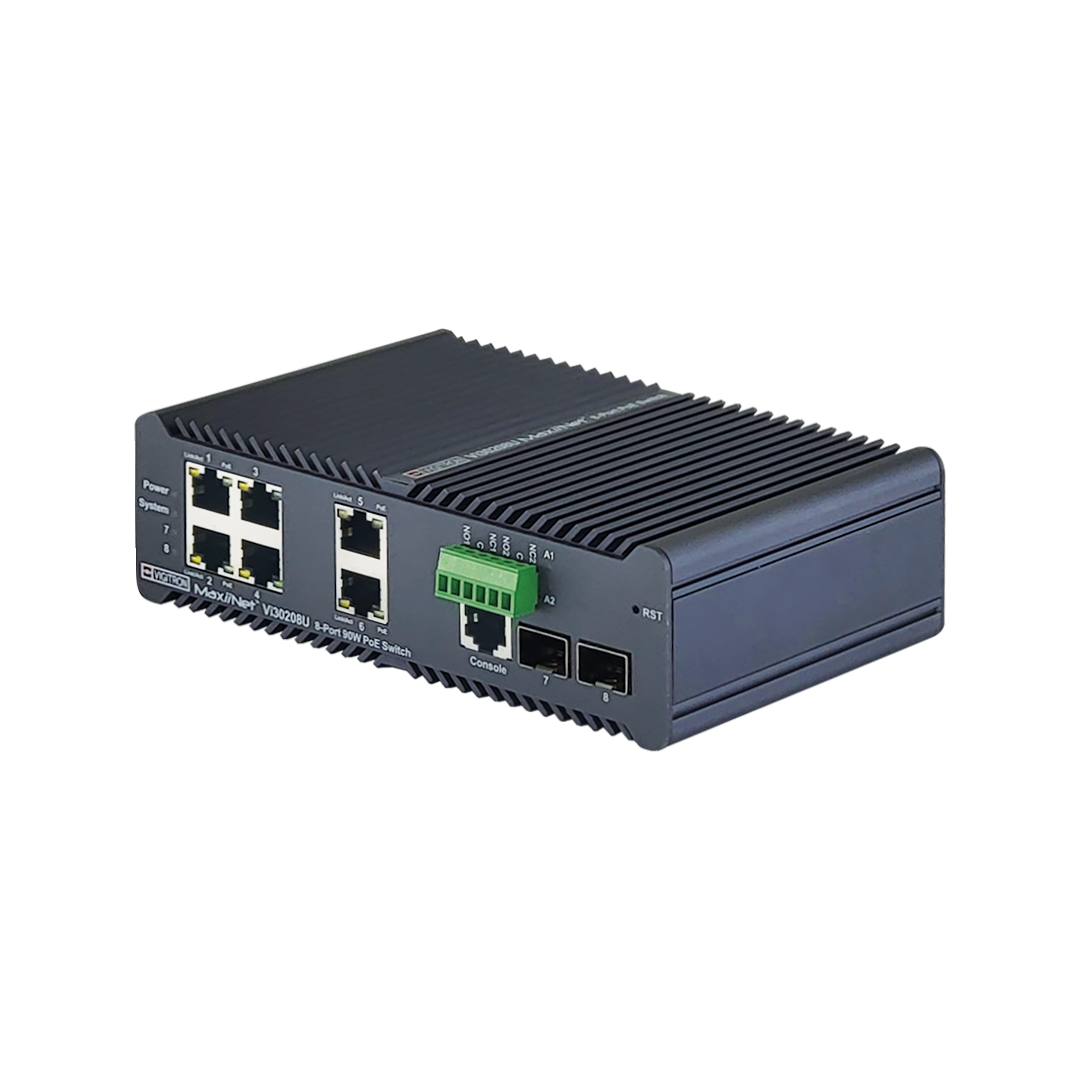

Vigitron Vi30208U 4+2+2 Port MaxiiNet™ 1G, L2 Hardened Industrial at/af/bt 90W Ring PoE Switch- TimeZone sync, Autochecking, 6 PoE ports

• 4 x 1G PoE copper, 2 x independent copper, 2 x 1G/2.5G independent Fiber uplink ports
• Jumbo frame programing at all bandwidth settings
• 90W IEEE 802.3bt compliant PoE on 6 ports, 730W Max PoE budget
• Dual power input for back up power supply
• Operating temperature range -40ºC to +70ºC
• PoE Port monitoring, auto recheck, and start up delay
• G.8032 V1/V2 Rapid Ring protocol compliant
• Built in 6kV port surge protection
• 22.Gbps switch fabric for highest MP camera handling
• Programmable port connection monitor with automatic link and PoE reconnection
• LLDP and ACL connection status identification
• Unique TimeZone reference for setting system synchronization
• Programmable Port Temperature settings
• Detailed Syslog with Health status messaging
• Din Rail and Desktop mounting

The Vigitron Vi30208U is a powerful Industrial PoE switch designed to provide reliable power and data transmission in demanding network environments. It features four x 1G PoE copper ports, two independent copper ports, and two fiber uplink ports, offering versatile connectivity options. The switch supports IEEE 802.3bt PoE standards, providing up to 90W per port across six ports for a total of 730W PoE budget. This makes it ideal for high-demand devices like PTZ cameras in various network setups.

Jumbo frame programming ensures smooth data transmission, especially for high-megapixel cameras. With dual power inputs for backup, the Vi30208U guarantees uninterrupted operation even during power failures. Built for harsh environments, it operates in temperatures ranging from -40°C to +70°C, well-suited for outdoor and industrial applications.

Advanced network features include PoE monitoring, auto recheck, and PoE startup delay, ensuring stable and consistent operation for connected devices. The switch also supports the G.8032 V1/V2 Rapid Ring protocol, enhancing network redundancy and failover capabilities. Additionally, built-in 6kV surge protection safeguards sensitive connected devices even in harsh environments.

The Vi30208U’s 22 Gbps switch fabric provides high-performance data handling, ensuring it can support bandwidth-heavy applications like video surveillance without any loss of performance. With support for LLDP (Link Layer Discovery Protocol) and ACL (Access Control Lists), network management becomes more streamlined and efficient.

The TimeZone reference feature allows seamless system time synchronization without external NTP servers, ensuring accurate event logging. Combined with programmable port temperature settings and detailed Syslog reporting, the switch improves network diagnostics and overall performance monitoring.

With high PoE power, advanced features, and reliable connectivity, the Vi30208U is an excellent choice for transit systems, campuses, and industrial application, providing modern solutions for network upgrades.
