Vigitron Vi30210U 8+2 Port MaxiiNet™ 1G, L2 Hardened Industrial at/af/bt 90W Ring PoE Switch=TimeZone sync, Autochecking 10 ports PoE

• 8 x 1G PoE independent copper, 2 x copper and 2 x 1G/2.5G Fiber uplink combo ports
• 8 x 1G/PoE Copper and 2 x 1G independent Fiber uplink ports
• Redundant 48-57VDC up to 730W back up power input
• IEEE 802.3bt class 0-8 PoE up to 90W per port
• Programmable PoE on 8 Ports
• PoE Port monitoring and auto recheck
• PoE port power start up delay
• 730W PoE budget
• 30.0 Gbps switch fabric for MP cameras
• Built in 6KV port surge protection
• Unique TimeZone reference for setting system synchronization
• G.8032 V1/V2 Rapid Ring protocol compliant
• Jumbo frame programming at all bandwidth settings
• Programmable port temperature settings
• Detail Syslog with Health status messaging
• LLDP and ACL connection status identification

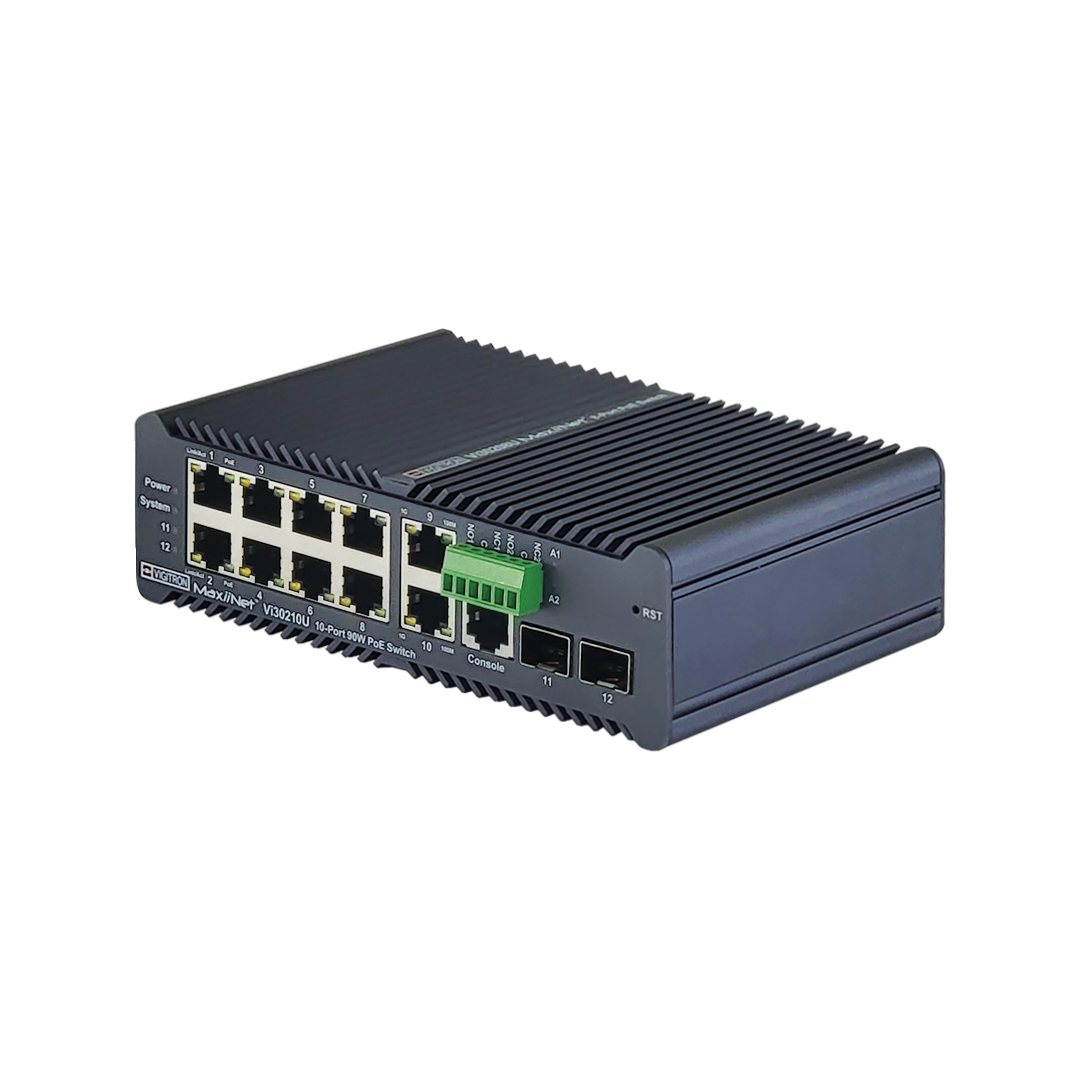

The Vigitron Vi30210U is a powerful Industrial PoE switch designed to provide reliable power and data transmission in demanding network environments. It features Eight independent copper PoE ports and 2 combo copper and fiber uplink ports. The Vi30210U supports IEEE 802.3bt PoE standards, providing up to 90W per port across eight ports for a total of 730W PoE budget. This makes it ideal for high-demand devices like PTZ cameras in various network setups. Additionally, the switch supports non-standard PoE devices up to 74W, enhancing compatibility for system upgrades.

The Vi30210U allows for flexible PoE power management on its 8 ports. Features like PoE monitoring and auto-recheck ensure continuous uptime, while the built-in power start-up delay prevents surges during system reboots. Its built-in 6kV surge protection safeguards sensative connected devices even in harsh environments.

A standout feature of the Vi30210U is its 30 Gbps switch fabric, enabling smooth data transmission for bandwidth-heavy applications such as high-megapixel cameras. Compliance with the G.8032 V1/V2 Rapid Ring protocol ensures network redundancy and reliability, making the switch ideal for mission-critical installations in transportation, security, and high-density camera networks.

Optimized for large data packets, the Vi30210U's jumbo frame support ensures top-tier performance in video-intensive environments. The unique TimeZone feature provides system-wide time synchronization, eliminating the need for external NTP servers. It also includes customizable port temperature settings and a detailed Syslog for advanced diagnostics.

Designed with dual power inputs for redundancy and tested to NEMA-TS2 standards, the Vi30210U operates in extreme temperatures ranging from -40°C to +70°C. Suitable for outdoor and industrial settings, this switch is an excellent solution for transportation systems, schools, office buildings, and other high-demand environments. Whether upgrading or building new, the Vi30210U delivers exceptional performance, reliability, and network security.
