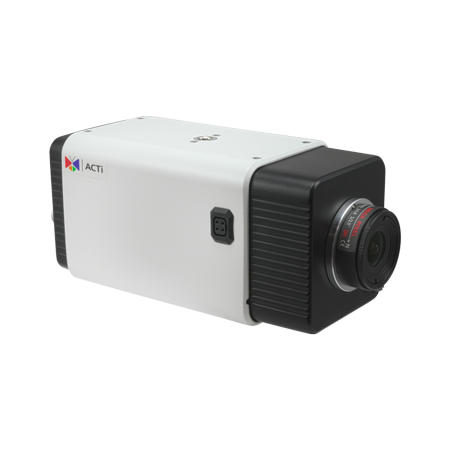

ACTi A213 5MP Face, People and Car Detection Box with D/N, Extreme WDR, ELLS, Fixed Lens
Quantity:
- Face, People and Car Detection
- 5 Megapixel
- Fixed Lens with f2.8mm/F2.0
- Extreme WDR
- H.265 Compression
- Super wide angle
- Built-in Analytics
Device
| Product Type | Box |
| Maximum Resolution | 5MP |
| Product Application | Face, People and Car Detection |
| Application Environment | Indoor/Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 2592(H) X 1944(V) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.018 lux (30 IRE); B/W: 0.001 lux |
| Mechanical IR Cut Filter | Yes |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1600 TVL |
| S/N Ratio | 75 dB |
Lens
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Auto back focus |
| Lens Mount | CS Mount (interchangeable lens for DC-Iris and P-Iris) |
| Horizontal Viewing Angle | 117.5° |
| Vertical Viewing Angle | 69.8° |
Video
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2592 x 1944 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 720 x 480 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous triple streams based on configurations of video resolution, compression format, and frame rate |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Saturation, Sharpness, Backlight compensation (BLC), Strong Light Suppression, Digital Image Stabilizer (DIS, EIS) |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics (Picture Overlay) | Yes |
| Built-in Analytics | Deep Learning : Face Detection, People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, People Loitering Detection |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) (90⁰, 180⁰, 270⁰) |
Audio
| Audio Type | 2-way, Built-in Microphone, Mic-in, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, G.711 |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event
| Event Trigger | Video motion detection (3 regions), External device through digital input, Sound detection, Intelligent event detection |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
System
| System Monitor | CPU loading, memory usage and network statistics via API |
| Watchdog | Support |
Integration
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol)* |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile Q, Profile T, Profile M |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Apple Safari |
| Auto Firmware Upgrade | Yes |
Interface
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, Terminal block |
| Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 1/1 (Terminal block) |
| Operating Button | Reset Button |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 5.76 W (PoE) |
| Weight | 420g (0.926lb) |
| Dimensions | (W x H x D): 62mm x 58mm x 128.49mm (2.44" x 2.28" x 5.059") |
| Environmental Casing | Optional housing (IP66-IP68) |
| Mount Type | Wall Mount, Ceiling Bracket |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Approvals | CE Class A, FCC Class A |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
