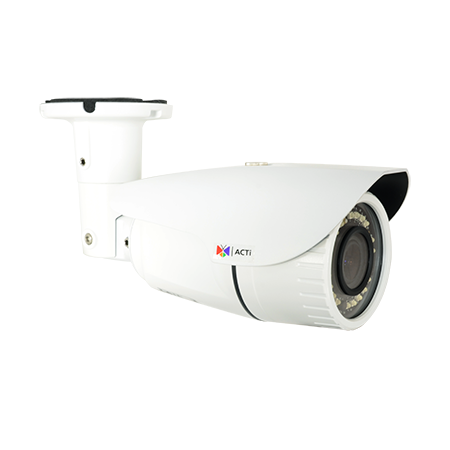

ACTi A43 2MP 4.3x Zoom Bullet Network Camera

ACTi A43 Features

Device

• Product Type Zoom Bullet
• Maximum Resolution 2MP
• Application Environment Outdoor
• Image Sensor Progressive Scan CMOS
• Sensor Size 1/2.8 "
• Effective Pixels 1945(H) X 1097(V) (2.13 MP)
• Day / Night Yes
• Low Light Sensitivity Extreme
• Minimum Illumination Color: 0.05 lux at F1.4; B/W 0.005 lux at F1.4 (AGC on)
• Color to B/W Switch ISP based switch, configurable
• Mechanical IR Cut Filter Yes
• IR Sensitivity Range 700-1150nm
• IR LED Adaptive IR LED x 22 (850 nm)
• IR Working Distance 30m
• Horizontal Resolution (TV Lines) 1100 TVL
• S/N Ratio 56 dB

Lens

• Focal Length Zoom, f2.8-12mm
• Aperture F1.4-F2.8
• Zoom Ratio 4.3x optical
• Zoom Application Camera Installation
• Iris P-Iris
• Focus Auto focus
• Lens Mount Board mount
• Horizontal Viewing Angle 88° - 25°

Video

• Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
• Maximum Frame Rate vs. Resolution 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480, 30 fps at 320 x 240
• Multi-Streaming Simultaneous dual streams based on two configurations
• Bit Rate 28Kbps - 12Mbps (per stream)
• Bit Rate Mode Constant, Variable
• Wide Dynamic Range Extreme WDR (100 dB)
• Image Enhancement Digital Image Stabilizer, Defogging, Digital Noise Reduction 2D + 3D DNR , Privacy Mask 4 configurable regions, Image Orientation Flip, Mirror, Rotation
• Built-in Analytics Tamper
• VMS-based Analytics Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)

Audio

• Audio Type 2-way, Mic-in, Line-in, Line-out
• Audio Compression 8 kHz, Mono, G.711

Network

• Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP
• Ethernet Port 1 x RJ-45 connector
• Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login

Event

• Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection
• Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output

Integration

• Unified Solution Fully compatible with ACTi software
• GPS Position Manual setting
• ONVIF Compliant Yes, Profile S
• Web Browser IE 9.0 or newer

Interface

• Local Storage No
• Digital Input/Output 1/1

General

• Power Source DC 12V, PoE Class 3 (IEEE802.3af)
• Power Consumption 10 W (PoE, IR on), 8 W (DC, IR on)
• Weight 0.82g (1.807lb)
• Dimensions (Ø x L): 80mm x 258.3mm (3.149" x 10.169")
• Environmental Casing Weatherproof (IP66), Vandal proof metal casing (IK10)
• Bundled Accessories Integrated bracket
• Mount Type Integrated Bracket, Pole Mount
• Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
• Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
• Operating Humidity 20% - 80% RH
• Warranty 3 Year(s)
