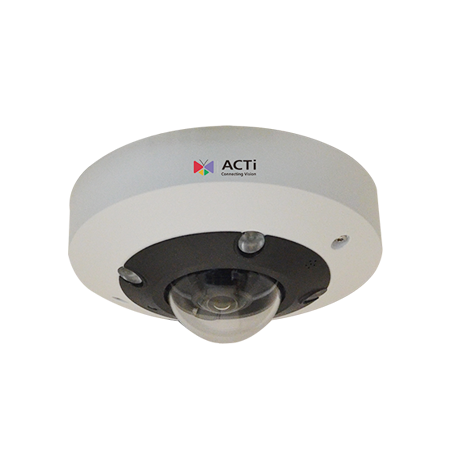

ACTi A713 5MP Outdoor Hemispheric Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Quantity:
Choose options
Quantity:
- 5 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fisheye Lens with f1.1mm/F2.4
- Superior WDR
- H.265 Compression
- 360°/180° Panorama View with Dewarped Streaming
- Event trigger, response and notification
Device
| Product Type | Hemispheric Dome |
| Maximum Resolution | 5MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 5m |
| Electronic Shutter | 1-1/10000 second (manual mode); 1-1/10000 second (auto mode) |
Lens
| Focal Length | Fixed focal, f1.1mm |
| Aperture | F2.4 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 180° |
Video
| Compression | H.265, H.264 (Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | (Fisheye View) 30 fps at 1920 x 1920 30 fps at 1920 x 1080 30 fps at 1600 x 1200 30 fps at 1408 x 1408 30 fps at 960 x 960 30 fps at 960 x 720 30 fps at 960 x 544 (Dewarped View) 30 fps at 1920 x 1080 30 fps at 1600 x 1200 30 fps at 960 x 720 30 fps at 960 x 544 (ePTZ View) 30 fps at 1920 x 1920 30 fps at 1920 x 1080 30 fps at 1600 x 1200 30 fps at 1408 x 1408 30 fps at 960 x 960 30 fps at 960 x 720 30 fps at 960 x 544 30 fps at 480 x 360 |
| View Mode | Fisheye View Dewarped View ePTZ View |
| Multi-Streaming | Simultaneous triple streams based on a single configuration |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Saturation, Automatic gain control, Backlight compensation (BLC) |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection |
| Image Orientation | Mirror, Rotation (Corridor mode) (90⁰, 180⁰, 270⁰) |
Audio
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | PCM, G.711, G.726, AAC |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DDNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
Event
| Event Trigger | Video motion detection, Tampering detection, External device through digital input, Sound detection |
| Event Response | Send E-mail Notification, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
System
| System Log | Support |
Integration
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes |
| Web Browser | Microsoft Edge(IE mode), Microsoft Edge*, Google Chrome*, Firefox* |
Interface
| Local Storage | MicroSD, MicroSDHC, MicroSDXC memory card slot (card not included) |
| Digital Input/Output | 1/1 |
| Operating Button | Reset Button |
General
| Power Source | DC 12V, PoE Class 0 (IEEE802.3af) |
| Power Consumption | 12.95 W (PoE) |
| Weight | 557.5g (1.23lb) |
| Dimensions | (Ø x H): 130mm x 57.8mm (5.11" x 2.28") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Heater | Yes |
| Operating Temperature | -10°C ~55°C (14°F ~ 131°F) heater off, -30°C ~55°C (-22°F ~ 131°F) heater on |
| Operating Humidity | 10% - 90% RH |
| Approvals | CE Class A, FCC Class A, IP66, IK10 |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * cross-browser compatibility: Not available for H.265 video decoding |
Dimension Diagram
Unit: mm [inch]
