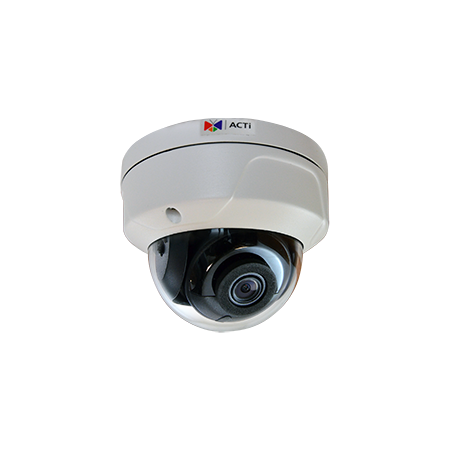

ACTi A77 6MP Outdoor Dome with D/N, IR, Extreme WDR, SLLS, Fixed Lens
ACTi A77 6MP Outdoor Dome with D/N, IR, Extreme WDR, SLLS, Fixed Lens

ACTi

ACTi A77 6MP Outdoor Dome with D/N, IR, Extreme WDR, SLLS, Fixed Lens

$482.67 $556.00
Save $73.33
SKU: A77
Quantity:
Link to Manufacturer's Page

Contact

  • 6 Megapixel
  • Day & Night with Superior Low Light Sensitivity and IR LED
  • Fixed Lens with f2.8mm/F1.6
  • Extreme WDR
  • Super wide angle
  • CNS 16120 Level 2 certified
  • Event trigger, response and notification

Device

Product Type Dome
Maximum Resolution 6MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.7 "
Effective Pixels 3864(H) X 2192(V) (8.46 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.003 lux; B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter Yes
IR LED IR LED x 3 (850 nm)
IR Working Distance 65m
S/N Ratio 52 dB

Lens

Focal Length Fixed focal, f2.8mm
Aperture F1.6
Iris Fixed iris
Focus Fixed focus
Lens Mount Board mount
Horizontal Viewing Angle 103.6°
Vertical Viewing Angle 56°
Viewing Angle Adjustment Pan: 0°-355°, Tilt: 0°-75°, Rotation: 0°-355°

Video

Compression H.265, H.264 (Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 20 fps at 3200 x 1800
20 fps at 3072 x 2048
20 fps at 2592 x 1944
30 fps at 2688 x 1520
30 fps at 2560 x 1440
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 640 x 480
Multi-Streaming Simultaneous quad streams
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (150 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Saturation, Automatic gain control
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Built-in Analytics Face Detection, Tampering Detection, Object Based Motion Detection, Object Line Crossing Detection, Object Enter Area Detection, People Motion Detection, People Line Crossing Detection, People Enter Area Detection, Vehicle Motion Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection
Image Orientation Flip, Mirror, Rotation (Corridor mode) (90⁰, 180⁰, 270⁰)

Audio

Audio Type 2-way, Line-in, Line-out
Audio Compression PCM, G.711, AAC***, G.726***

Network

Network Protocol & Service IPv4, IPv6***, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event

Event Trigger Video motion detection (4 polygonal regions with up to 10 vertices), External device through digital input, Intelligent event detection, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account)
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

System

System Log Support
Watchdog Support

Integration

Unified Solution Fully compatible with ACTi software
GPS Position Manual setting
Edge Recording Support (integration with NVR by ONVIF Profile G or proprietary protocol)**
ONVIF Compliant Yes, Profile S, Profile G, Profile T
Web Browser IE 11, Google Chrome*, Microsoft Edge*, Apple Safari*
Auto Firmware Upgrade Yes

Interface

Local Storage MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output 1/1 (Terminal block)
Operating Button Reset Button

General

Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 7.5 W (PoE)
Dimensions (Ø x H): 110.82mm x 84.7mm (4.36" x 3.33")
Environmental Casing Weatherproof (IP68), Vandal proof (IK10)
Mount Type Wall Mount, Pole Mount, Pendant, Flush, Gang Box
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Approvals CE Class B, FCC Class B, IP68, NEMA 4X, IK10, CNS 16120 (TAICS, TCA) Level 2***
Color White
Real-time Clock (RTC) Yes
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * cross-browser compatibility: Not available for H.265 video decoding
** Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
*** To be available through future firmware upgrade

Photo Indication

  1. Memory Card Slot
  2. Reset Button
  3. Audio Input / Output
  4. Digital Input / Output
  5. DC 12V Power Input
  6. Ethernet Port

Dimension Diagram

Unit: mm [inch]
