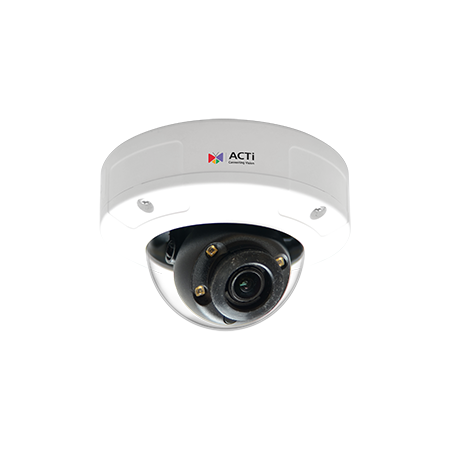

ACTi A88-B 3MP Outdoor Mini Zoom Dome with D/N, Adaptive IR, Advanced WDR, SLLS, 2.85x Zoom
- 3 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 2.85x Zoom Lens with f2.8-8.0/F1.6, Auto focus (for installation)
- Advanced WDR
- H.265 Compression
- Wide Angle
- Event trigger, response and notification
Device
| Product Type | Mini Zoom Dome |
| Maximum Resolution | 3MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 2065(H) X 1553(V) (3.21 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.1 lux at F1.6; B/W 0 lux at F1.6 (AGC on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1150nm |
| IR LED | Adaptive IR LED |
| IR Working Distance | 30m |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1100 TVL |
Lens
| Focal Length | Zoom, f2.8-8.0mm |
| Aperture | F1.6 |
| Zoom Ratio | 2.85x optical |
| Zoom Application | Camera Installation |
| Iris | Adaptive iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 95° - 55° |
| Viewing Angle Adjustment | Pan: ±120°, Tilt: 30°-90° |
Video
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 720 x 480 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Advanced WDR (120 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics | Yes |
| Built-in Analytics | Tampering Detection |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror, Rotation |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login |
Event
| Event Trigger | Video motion detection (3 regions), Tampering detection |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Save video to local storage, Upload video or snapshot to FTP server |
Integration
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile Q |
| Web Browser | IE 11 |
| Auto Firmware Upgrade | Yes |
Interface
| Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 128GB) |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8 W (PoE, IR on), 9 W (DC, IR on) |
| Weight | 363g (0.8lb) |
| Dimensions | (Ø x H): 99mm x 64.7mm (3.9" x 2.5") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Mount Type | Surface, Wall Mount, Pendant |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Humidity | 20% - 80% RH |
| Approvals | CE (EN 55032 Class A, EN 55024), FCC Class A, IP66, IK10 |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Photo Indication
- Power Input
- Ethernet Port
- Memory Card Slot
- Reset Button
Dimension Diagram
Unit: mm [inch]
3MP Outdoor Mini Zoom Dome with D/N, Adaptive IR, Advanced WDR, SLLS, 2.85x Zoom lens, f2.8-8mm/F1.6 (HOV:95°-55°), Adaptive iris, Auto Focus (for installation), H.265/H.264, 1080p/30fps, 2D+3D DNR, MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK10. Installation cable at the back.
