Discontinued, replaced by the D91, E91, E94, E95, B51, & B53.

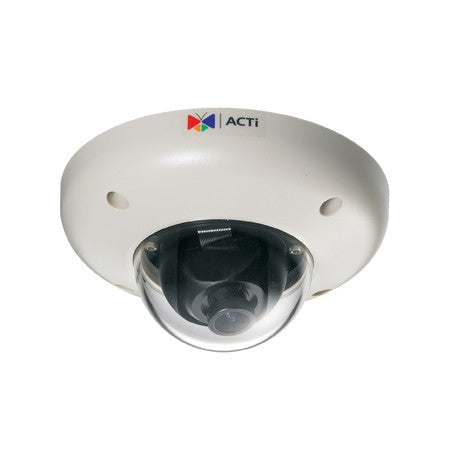

ACTi ACM-3701E Features:
- Resolution: 8 fps at 1280 x 1024 (SXGA); 10 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA); 30 fps at 320 x 240 (QVGA); 30 fps at 160 x 112 (QQVGA)
- Image Sensor: Progressive Scan CMOS
- Sensor Size: F1.8
-
Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: Color: 0.5 lux at F1.0 (30 IRE, 2400°K); B/W: 0.5 lux at F1.0 (30 IRE, 2400°K)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Board Mount
- Focal Length: f3.6mm / F1.8
- Zoom: N/A
- Iris: Fixed
- Focus: Fixed
- Field of View: Horizontal: 72.3° Pan: ± 20°; Tilt: 0° - 90°; Rotate: ± 15°
- Compression Styles: MPEG-4 SP, MJPEG,
- Frame Rate: 30 fps
- Image Settings: Basic WDR; White balance: automatic, hold, and manual; Brightness; Contrast; Auto gain control; Digital noise reduction; Flickerless
- Privacy Mask: 1 configurable region; Image flip and mirror
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Vandal Proof, Video Motion Detection (3 regions), notify control Center.
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
- Users: N/A
- On-board Storage: N/A
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: 100 mm x 50 mm (3.94" x 1.97")
- Weight: 3.5
- Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 3 (IEEE802.3af) / 2.4 W
- Warranty: One Year
