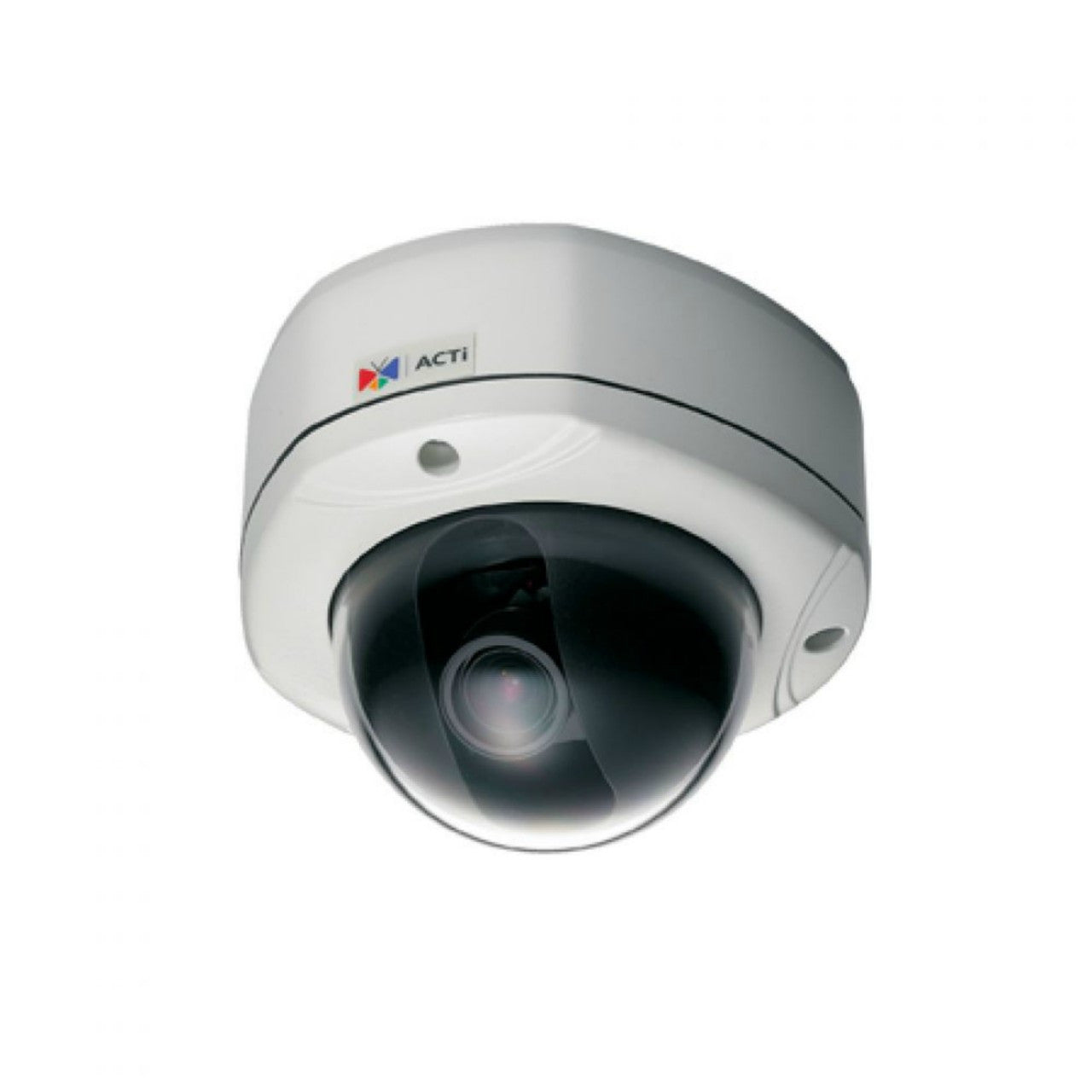

ACTi ACM-7411 1.3MP Varifocal Day/Night Vandal Outdoor Dome IP Network Camera

Discontinued, replaced by the D81A, E81A, E84A, E85A, E88, A81.

ACTi ACM-7411 Features

• Image Sensor: Progressive Scan CMOS
• Sensor Size: 1/3" (4.8 x 3.6 mm)
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.5 lux at F1.0 (30 IRE, 2400°K); B/W: 0.05 lux at F1.0 (30 IRE, 2400°K)
• IR Illuminators: No
• IR Illuminator Range: n/a
• Lens Type: Vari-focal
• Focal Length: f3.3 - 12 mm / F1.6
• Zoom: N/A
• Iris: Fixed
• Focus: Fixed
• Field of View: Horizontal Viewing Angle: 83° - 23.8°
• Compression Styles: MPEG-4 SP, MJPEG
• Frame Rate: 8 fps at 1280 x 1024 (SXGA); 10 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA); 30 fps at 320 x 240 (QVGA); 30 fps at 160 x 112 (QQVGA)
• Image Settings: White balance: automatic, hold, predefined and manual; Brightness; Saturation; Contrast; Sharpness; Automatic gain control; Auto exposure: automatic, predefined and manual; Flickerless
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Audio in, Audio out
• Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server; Activate external device through digital output
• ONVIF: Yes
• Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Users: N/A
• On-board Storage: Yes
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weatherproof (IP66 rated); Transparent vandal proof dome cover, up to 659.23 kgF (1453.35 lbF)
• Dimensions: 151.69 mm x 114.9 mm (6.0" x 4.5")
• Weight: 1040 g (2.29 lb)
• Operating Temperature: -30 °C ~ 50 °C (-22 °F ~ 122 °F) for DC 12V; -5 °C ~ 50 °C (23 °F ~ 122 °F) for PoE
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 3 (IEEE802.3af), DC 12V
• Warranty: 2 Years
