ACTi

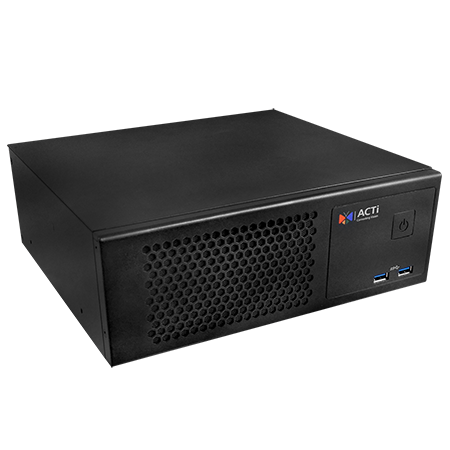

ACTi ACS-100 200-Channel 1-Bay Mini Standalone Access Control Server with HDMI, DVI and Displ
Quantity:
200-Channel 1-Bay Mini Standalone Access Control Server with HDMI, DVI and Display port, 4-channel free license included, Supports External Storage (eSATA, iSCSi), 1-Bay (Storage Disks not included), Audio, AC 100-240V
Device
| Product Type | Access Control Server |
| Description | ACS-100 Access Control Server is a comprehensive and user friendly Central Management Software (CMS) for managing multiple facial recognition devices over the network. It can be easily installed on a Windows based PC/laptop without special configuration of database and system resources. |
| Maximum Number of Devices | 200 Access Control devices |
Hardware
| CPU | Intel Core i5-6500TE |
| RAM | 8GB |
License
| License required | Yes |
| Free License | 4 |
Market Application Suite Features
| Main Features | ● Real-time event monitoring of all connected devices ● Provide a central location for administrator to do event log, user and device management ● Backup facial templates, event data and captured images ● Export reports for access control, attendance management ● Batch import profiles to all access control devices |
| Real-time Event Monitoring | ● Get instant alerts of system events from multiple access control devices ● Delay of alert < 1 second ● Display alerts in different colors based on the priority |
| Event Log Management | ● Backup all events including image snapshots and securely store them in the database ● Search log by conditions, including User ID, Device, Event Type, and Date Duration ● Sort log by Date, Location, Device, Event Type, User ID/User Name ● Export image files ● Export log to reports in standard CSV, TXT and Excel format ● Generate printable report documents for attendance management |
| User Management | ● Enroll new users; edit and remove existing users ● Download one or multiple user facial templates ● Batch upload multiple user profile templates to multiple access control devices ● User upload and download in the background while processing other tasks ● Manage user personal information in the database ● Group concepts to easily manage users or employees |
| Notification | ● Pop-up window on the web user interface ● Instant e-mail notification ● App push notification ● Customized alarm rule for different location requirements |
| Dashboard / Report | ● Support detailed line and pie chart ● Manual export of report based on user preference ● Automatic export of report on a Daily / Weekly / Monthly basis |
| Device Management | ● Add new devices; edit and remove existing devices ● Classify device based on its installation location (Site, Level, and Room) ● Display real-time system information of each device ● Multiple language support ● Group concept to easily manage access control devices |
| Add-On Function (Optional) | ● Meeting resource management system integration ● Human resource system management ● Media management system integration ● NVR integration with snapshot and playback function |
Audio
| Audio Type | 2-way, Mic-in, Line-out |
Network
| Ethernet Port | Total ports: 2 port(s) Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector |
System
| Server Operating System | Windows 10 IoT |
| USB | 6-Port USB 3.0 |
Storage
| System Drive | SSD, 128GB |
| Storage Bay | SATA, Max. 1 Disk(s) (optional for project request) |
| HDD Size | 3.5" |
Interface
| Serial Port | 2 x RS-232 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| External Storage Interface | eSATA, iSCSI |
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, DVI x 1, Display Port x 1, |
General
| Weight | 3172g (6.993lb) |
| Dimensions | (W x H x D): 255mm x 88mm x 230mm (10" x 3.5" x 9.1") |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Approvals | CE, FCC |
| Color | Black |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Photo Indication
- Power Button
- USB 3.0 Port
- Display Port
- Ethernet Port
- Serial Port
- Audio Line-out
- HDMI Port
- USB 3.0 Port
- DVI Port
- Audio Mic-in
Dimension Diagram
Unit: mm [inch]
