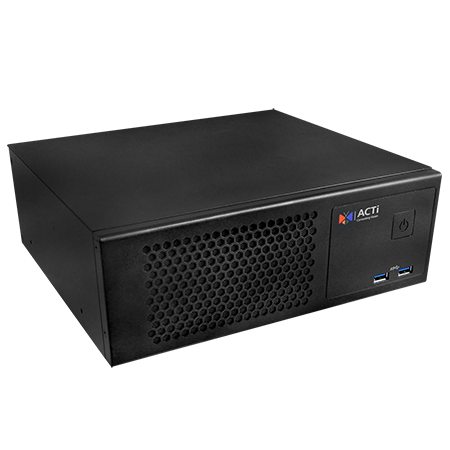

ACTi ALS-100 100-Channel 1-Bay Mini Standalone Attention List Server with HDMI, DVI and Displ
- 1-bay Mini Standalone Market Application Suite
- Maximum Number of Video Devices: 100
- Free License: 4
- Location-based management with e-Map
- Intel Core i5-6500TE, 8GB
Device
| Product Type | Standalone Market Application Suite |
| Product Application | Attention List |
| Maximum Number of Video Devices | 100 |
| Key Features | ● Real-time Event monitoring ● Real-time notification along with Mobile/ web alarm/ Mail ● Directly face enrollment in Web page/ Pick picture from detected list ● Batch enrollment on Face registration ● White List/ Black List/ VIP grouping ● Multiple filter searching for event database ● Export Report to Excel/ CSV/ TXT ● Customization for report which is based on receiving group/ specific manager ● Customization for report schedule ● Adjustable on storage cleaning cycle ● Video playback function when event is happened. ● Flexible to set the playback interval |
Hardware
| CPU | Intel Core i5-6500TE |
| RAM | 8GB |
License
| License required | Yes |
| Free License | 4 |
Market Application Suite Features
| Device Health Monitoring | ● MAS Server Health Monitoring |
| System Management | ● User Permission Management ● Store Name Customization ● Floor Map Customization ● Camera Configuration ● MAS Server Configuration |
Map
| e-Map | Yes |
| Google Map | Yes |
Audio
| Audio Type | 2-way, Mic-in, Line-out |
Network
| Ethernet Port | Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector |
System
| Server Operating System | Windows 10 IoT |
| USB | 6-Port USB 3.0 |
Storage
| System Drive | SSD, 128GB |
| Storage Bay | SATA, Max. 1 Disk(s) (without storage disks) |
Interface
| Serial Port | 2 x RS-232 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| External Storage Interface | eSATA, iSCSI |
| Local Display Interface | HDMI x 1, DVI x 1, Display Port x 1, |
General
| Power Source | AC 100-240V |
| Weight | 3172g (6.993lb) |
| Dimensions | (W x H x D): 255mm x 88mm x 230mm (10" x 3.5" x 9.1") |
| Bundled Accessories | Power cord |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 0% - 85% RH |
| Approvals | CE, FCC |
| Color | Black |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
100-Channel 1-Bay Mini Standalone Attention List Server with HDMI, DVI and Display port, 4-channel free license included, Supports External Storage (eSATA, iSCSi), 1-Bay (Storage Disks not included), Audio, AC 100-240V
