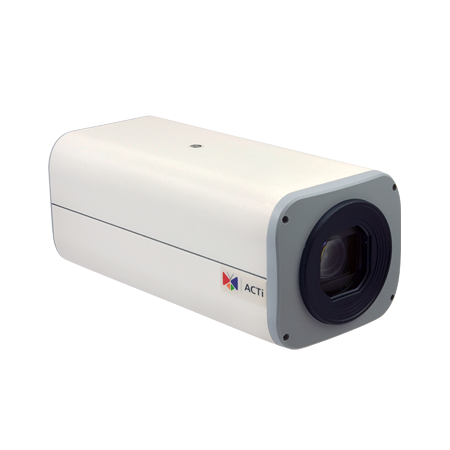

ACTi B214 2MP 20x Zoom Box Network Camera
ACTi B214 Features
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Effective Pixels: 1944 (H) x 1244 (V) (2.41 MP)
- Day / Night: Yes
- Low Light Sensitivity: Superior
- Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K)
- Mechanical IR Cut Filter: Yes
- IR LED: No
- Focal Length / Aperture: Zoom, f4.7 - 94mm / F1.6 - 3.5
- Zoom Ratio /Speed: 20x optical / 2.2 sec (wide to tele)
- Iris: DC-iris
- Focus: Auto focus
- Lens Mount: Board mount
- Horizontal Viewing Angle: 60.8° ~ 3.4°
- Compression: H.264 (Baseline / Main / High profile), MJPEG
- Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 30 fps at 320 x 240
- Image Enhancement Extreme WDR (145 dB); White balance: automatic, hold, and manual; Brightness; Saturation; Contrast; Sharpness (auto); Auto gain control; 2D+3D Digital noise reduction; Flickerless; **Defogging, Privacy Mask Up to 20 preset points including home position with up to 4 configurable regions for each Zoom position; User defined text on video; Image flip, mirror and rotation
- Built-in Analytics: Motion Detection, Tamper, Digital Image Stabilizer, **Line Crossing, **Enter Area, **Appearing in Area, **Missing Object, **Unattended Object (**Will be available in the future)
- Audio-In: Terminal block
- Audio-Out: Terminal block
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Alarm Trigger: Video motion detection (10 regions); External device through digital input; Sound detection
- Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
- Local Storage: **MicroSDHC memory card slot (card not included)
- Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 10.2 W (built-in heater on); DC 12V (adapter not included) / 8.7 W (built-in heater on)
- Weight: 732 g (1.61 lb)
- Dimensions (W x H x D): 81 mm x 71 mm x 176 mm (3.2" x 2.8" x 6.9")
- Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
