ACTi B22

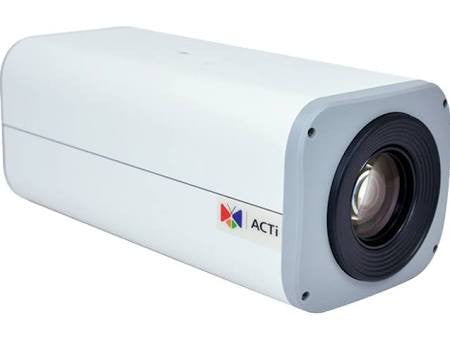

ACTi B22 5MP 10x Zoom Box Network Camera

ACTi

ACTi B22 5MP 10x Zoom Box Network Camera

$640.80
Discontinued
SKU: B22
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: B26, A28

ACTi B22 Features

  • Image Sensor 1/3.2" Progressive Scan CMOS
  • Effective Pixels: 2592 (H) x 1944 (V) (5.04 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Standard
  • Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0.05 lux at F1.8 (30 IRE, 2400°K)
  • Mechanical IR Cut Filter: Yes
  • IR LED: No
  • Focal Length / Aperture: Zoom, f4.9 - 49mm / F1.8 - 3.0
  • Zoom Ratio / Speed: 10x optical / 2.5 sec (wide to tele)
  • Iris: DC iris
  • Focus: Auto focus
  • Lens Mount: Board mount
  • Horizontal Viewing Angle: 49.69° ~ 5.83°
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
  • Image Enhancement Basic WDR (74 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text on video; Image flip and mirror; Privacy Mask Up to 17 preset points including home position with up to 4 configurable regions for each Zoom position
  • Audio-In: Terminal block
  • Audio-Out: Terminal block
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Save video or snapshot to FTP server; Activate external device through digital output
  • Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 5.28 W; DC 12V (adapter not included) / 4.32 W
  • Weight: 607 g (1.338 lb)
  • Dimensions (W x H x D): 81 mm x 71 mm x 176 mm (3.2" x 2.8" x 6.9")
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
