ACTi B416

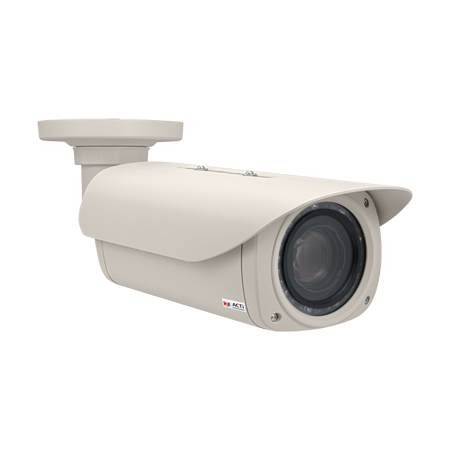

ACTi B416 2MP 30x Zoom Bullet Network Camera

ACTi

ACTi B416 2MP 30x Zoom Bullet Network Camera

$917.89
Discontinued
SKU: B416
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: I42

ACTi B416 Features:

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Effective Pixels: 1944 (H) x 1224 (V) (2.38 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Superior
  • Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • Mechanical IR Cut Filter: Yes
  • IR LED: Adaptive IR LED x 27 (850 nm)
  • IR Working Distance: 40 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Focal Length / Aperture: Zoom, f4.5 - 135 mm / F1.6 - 4.4
  • Zoom Ratio / Speed: 30x optical; 400~800 pps
  • Iris: DC iris
  • Focus: Auto focus
  • Mount Type: Board mount
  • Horizontal Viewing Angle: 59.8° ~ 2.34°
  • Compression: H.264 (Baseline/ Main/ High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
  • Image Enhancement: Extreme WDR (145 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Defogging; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Digital image stabilizer; Privacy Mask 20 configurable regions; User defined text on video; Image flip and mirror
  • Built-in Analytics: Object Based Motion Detection, Tamper, Shock Detection, Line Crossing, Enter Area, Missing Object, Unattended Object
  • Audio-In: Terminal block
  • Audio-Out: Terminal block
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • Local Storage: MicroSDHC card slot (card not included)
  • Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 12.6W; DC 12V (adapter not included) / 10.3W
  • Weight: 2.18 kg (4.81 lb)
  • Dimensions: (W x H x D) 122 mm x 124 mm x 363 mm (4.82” x 4.89” x 14.28”)
  • Environmental Casing: Weatherproof (IP67 rated); Vandal proof metal casing (IK10)
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
