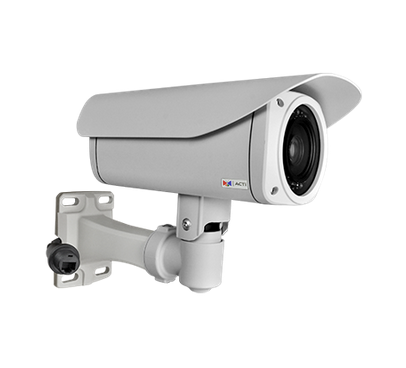

ACTI B46 5MP Zoom Bullet Camera
ACTI B46 5MP Zoom Bullet Camera Rear View
ACTI B46 5MP Zoom Bullet Camera Internal View
ACTI B46 5MP 10x Zoom Bullet Network Camera

ACTi

ACTI B46 5MP 10x Zoom Bullet Network Camera

$711.20
Discontinued
SKU: B46
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: B419

ACTI B46 Features:

  • Max Resolution: 2592 (H) x 1944 (V) (5.04 MP)
  • Image Sensor: 1/3.2" Progressive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • IR Illuminators: Yes, Adaptive IR LED x 27 (850 nm)
  • IR Illuminator Range: 40 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Lens Type: Vari-focal board mount
  • Focal Length: f4.9 - 49mm / F1.8 - 3.0
  • Zoom: 10x optical ; 2.5 sec (wide to tele)
  • Iris: DC iris
  • Focus: Auto focus
  • Field of View: 49.7° ~ 5.8°
  • Compression Styles: H.264 (Baseline/ Main/ High profile), MJPEG
  • Frame Rate: 15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
  • WDR Technology: Basic WDR (74 dB)
  • Image Settings: White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless
  • Privacy Mask: Yes, 4 configurable regions for each of 17 preset points
  • Built-in Microphone: No
  • Audio Capabilities: 2-way (Line-in, Line-out via terminal block)
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Sound detection; Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Save video or snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weatherproof (IP67 rated); Vandal proof metal casing (IK10)
  • Dimensions: 122.4 mm x 223.7 mm x 317 mm (4.82” x 8.81” x 12.48”)
  • Weight: 2.3 kg (5.07 lb)
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 3 (IEEE802.3af) / 5.6 W
  • Warranty: 3 Years
