ACTi B511

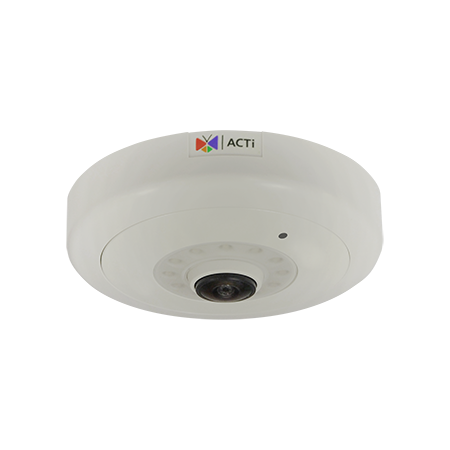

ACTi B511 12MP IR Hemispheric Indoor Network Camera

ACTi

ACTi B511 12MP IR Hemispheric Indoor Network Camera

$1,025.00
Discontinued
SKU: B511
Link to Manufacturer's Page

Contact

ACTi B511 Features

  • Image Sensor: 1/1.7" Progressive Scan CMOS
  • Effective Pixels: 4072 (H) x 3046 (V) (12.4 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Superior
  • Minimum Illumination: Color: 0.1 lux at F2.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • Mechanical IR Cut Filter: Yes
  • IR LED: Adaptive IR LED x 12 (850 nm)
  • IR Working Distance: 20 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Focal Length / Aperture: Fisheye lens, f1.3mm / F2.6
  • Iris: Fixed iris
  • Focus: Fixed focus
  • Mount Type: Board mount
  • Horizontal Viewing Angle: 194.2°(overview area), 118.5° (high detail area)
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • View Mode: Fisheye view; Dewarped view: 180° / 360° Panorama, ePTZ
  • Max. Frame Rate vs. Resolution: 18 fps at 4000 x 3000; 24 fps at 4096 x 2160; 24 fps at 3840 x 2160; 30 fps at 2048 x 2048; 30 fps at 1600 x 1200; 30 fps at 1920 x 1080; 30 fps at 1024 x 1024; 30 fps at 1280 x 960; 30 fps at 1280 x 720; 30 fps at 800 x 600
  • Image Enhancement: Extreme WDR (130 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Automatic gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Privacy Mask **32 configurable regions; **User defined text on video; Image flip and mirror
  • Built-in Analytics: OZT technology; Digital Auto Tracking; *Tamper; *Shock Detection; *Line Crossing; *Enter Area; *Missing Object; *Unattended Object; *Smoke Detection (*Some of the algorithms may not be available in the first release, can be upgraded for free later.)
  • Audio-In: Cable with 3.5mm phone jack
  • Audio-Out: Cable with 3.5mm phone jack
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control; Anonymous Login
  • Alarm Trigger: Video motion detection (10 regions); **External device through digital input; **Sound detection
  • Alarm Response: **Notify control center; **Go to ePTZ preset point or preset tour; **Change camera settings; **Command other devices; **E-mail notification with snapshots; **Save video or snapshot to local storage; **Upload video or snapshot to FTP server; **Activate external device through digital output
  • Local Storage: **MicroSDHC/MicroSDXC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 3 (IEEE 802.3af) / 7.17 W; DC 12V (adapter not included) / 5.99 W
  • Weight: 452 g (0.996 lb)
  • Dimensions (Ø x H): 149.1 mm x 43 mm (5.9" x 1.7")
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
