ACTi B52

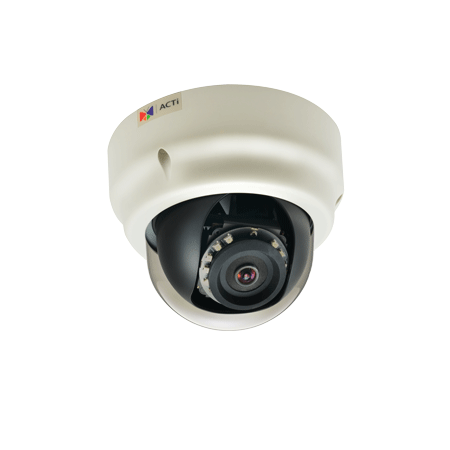

ACTi B52 10MP Adaptive IR Indoor Dome Network Camera

ACTi

ACTi B52 10MP Adaptive IR Indoor Dome Network Camera

Sale price$570.00
Discontinued
SKU: B52

Acti B52 Features:

  • Max Resolution: 3648 x 2736
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/2.3"
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • IR Illuminators: Manual Adaptive IR LED x 10 (850nm)
  • IR Illuminator Range: 10 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Lens Type: Fixed Focal Board Mount
  • Focal Length: f1.9 mm / F2.8
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: Horizontal: 102°; Pan: 0° - 350°; Tilt: 17° - 163° ; Rotate: 0- 350°
  • Compression Styles: H.264 HP, MJPEG
  • Frame Rate: 6 fps at 3648 x 2736; 6 fps at 3648 x 2160; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
  • Image Settings: Fisheye view; Basic WDR (65.2 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip & mirror
  • Privacy Mask: 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: Two-way audio via audio in/audio out terminal block
  • Alarm/Event Management: Video Motion Detection (3 regions), External device through digital input, Notify control Center, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to local storage, Upload video, Snapshot to FTP server, Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login, IEEE 802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Vandal resistant (IK09), Transparent dome cover
  • Dimensions: 146 mm x 113.9 mm ( 5.8'' x 4.5'')
  • Weight: 510 g (1.124 Ib)
  • Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 7.32 W ; DC 12V/ 5.86 W (adapter not included)
  • Warranty: 3 Years
