ACTi B56

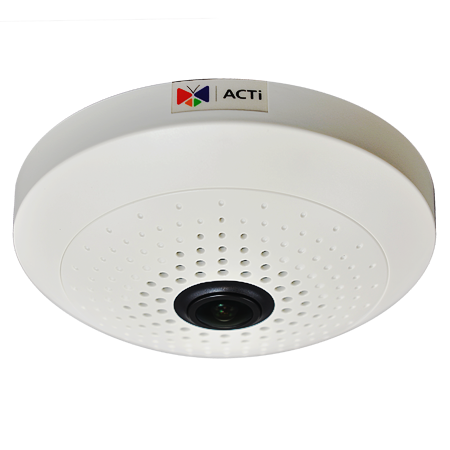

ACTi B56 3MP Indoor Fisheye Network Camera

ACTi

ACTi B56 3MP Indoor Fisheye Network Camera

Sale price$370.00
Discontinued
SKU: B56

Contact

ACTi B56 Features

  • Max Resolution: 2048 x 1536
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0.05 lux at F2.0 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed fisheye
  • Focal Length: f1.19 mm / F2.0
  • Zoom: ePTZ
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: 180° Horizontal
  • Compression Styles: H.264, MJPEG
  • Frame Rate: 15 fps at 2048 x 1536; 15 fps at 640 x 480; 15 fps 320 x 240
  • Image Settings: Superior WDR (107 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Automatic gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip & mirror
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: Audio in & Audio out: cables with 3.5mm phone jack
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Users: N/A
  • On-board Storage: Yes, MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 150mm x 48mm (5.91" x 1.90")
  • Weight: 338 g (0.75 lb)
  • Operating Temperature: -10 °C - 50°C (14°F - 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power/Consumption: PoE Class 2 (IEEE 802.3af) / 4.5 W; DC 12V / 3.5 W (adapter not included)
  • Warranty: 3 years
  • What's Included: Camera, screw kit, drill template sticker, terminal block (for power), terminal block (for DI/DO), quick installtion guide, warranty card
