ACTi B74

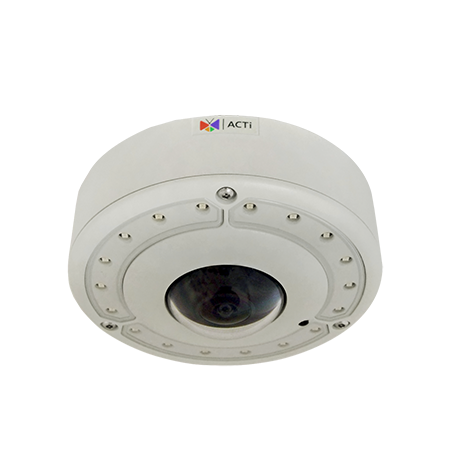

ACTi B74 8MP IR Hemispheric Outdoor Network Camera

ACTi

ACTi B74 8MP IR Hemispheric Outdoor Network Camera

$930.00
Discontinued
SKU: B74
Link to Manufacturer's Page

Contact

Discontinued; replaced by the B74A, B76A, Q71

ACTi B74 Features

  • Image Sensor 1/1.8" Progressive Scan CMOS
  • Effective Pixels: 4096 (H) x 2160 (V) (8.8 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Superior
  • Minimum Illumination: Color: 0.1 lux at F2.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • Mechanical IR Cut Filter: Yes
  • IR LED: Adaptive IR LED x 18 (850 nm)
  • IR Working Distance: 20 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Focal Length / Aperture: Fisheye lens, f1.3mm / F2.6
  • Iris: Fixed iris
  • Focus: Fixed focus
  • Mount Type: Board mount
  • Horizontal Viewing Angle: 194°
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • View Mode: Fisheye view; Dewarped view: 180° / 360° Panorama, ePTZ
  • Max. Frame Rate vs. Resolution: Fisheye: 30 fps at 3072 x 2048; 30 fps at 2592 x 1944; 30 fps at 2048 x 1536; 120 fps at 1920 x 1080; 120 fps at 1280 x 720; 30 fps at 640 x 480
  • Dewarped: 10 fps at 4096 x 2160; 10 fps at 3840 x 2160; 30 fps at 1920 x 1080; 30 fps at 1280 x 960; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480
  • Image Enhancement Extreme WDR (130 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Automatic gain control; 2D+3D digital noise reduction; Flickerless; Defogging;
  • Privacy Mask 32 configurable regions; User defined text on video; Image flip and mirror
  • Built-in Analytics: Tamper; Shock Detection; Digital Auto Tracking; **Line Crossing; **Enter Area; **Missing Object; **Unattended Object; **Smoke Detection (**Some of the algorithms may not be available in the first release, can be upgraded for free later.)
  • Audio-In: Cable with 3.5mm phone jack
  • Audio-Out: Cable with 3.5mm phone jack
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control; Anonymous Login
  • Alarm Trigger: Video motion detection (10 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 3 IEEE802.3af / 7.3 W; DC 12V (adapter not included) / 5.6 W
  • Weight: 936 g (2.059 lb)
  • Dimensions (Ø x H): 152.00 mm x 71.04 mm (6.0" x 2.8")
  • Environmental Casing: Weatherproof (IP68); Vandal proof metal casing (IK10)
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
