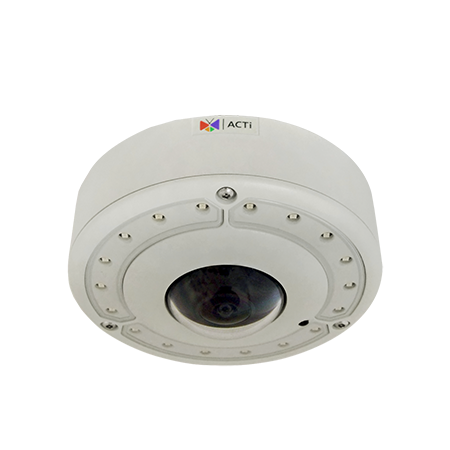

ACTi B76 12MP IR Hemispheric Outdoor Network Camera

Discontinued - Recommended Replacement: B76A

ACTi B76 Features

• Image Sensor: 1/1.7" Progressive Scan CMOS
• Effective Pixels: 4072 (H) x 3046 (V) (12.4 MP)
• Day / Night: Yes
• Low Light Sensitivity: Superior
• Minimum Illumination: Color: 0.1 lux at F2.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
• Mechanical IR Cut Filter: Yes
• IR LED: Adaptive IR LED x 18 (850 nm)
• IR Working Distance: 20 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
• Focal Length / Aperture: Fisheye lens, f1.3mm / F2.6
• Iris: Fixed iris
• Focus: Fixed focus
• Mount Type: Board mount
• Horizontal Viewing Angle: 190°
• Compression: H.264 (Baseline / Main / High profile), MJPEG
• View Mode: Fisheye view; Dewarped view: 180° / 360° Panorama, ePTZ
• Max. Frame Rate vs. Resolution: 18 fps at 4000 x 3000; 24 fps at 4096 x 2160; 24 fps at 3840 x 2160; 30 fps at 2048 x 2048; 30 fps at 1600 x 1200; 30 fps at 1920 x 1080; 30 fps at 1024 x 1024; 30 fps at 1280 x 960; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps 640 x 480
• Image Enhancement Extreme WDR (130 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Automatic gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Privacy Mask 32 configurable regions; User defined text on video; Image flip and mirror
• Built-in Analytics: Tamper; Shock Detection; Digital Auto Tracking; **Line Crossing; **Enter Area; **Missing Object; **Unattended Object; **Smoke Detection (**Some of the algorithms may not be available in the first release, can be upgraded for free later.)
• Audio-In: Cable with 3.5mm phone jack
• Audio-Out: Cable with 3.5mm phone jack
• Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control; Anonymous Login
• Alarm Trigger: Video motion detection (10 regions); External device through digital input; Sound detection
• Alarm Response: Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
• Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
• Power Source / Consumption: PoE Class 3 IEEE802.3af / 8.2 W; DC 12V (adapter not included) / 6.4 W
• Weight: 936 g (2.059 lb)
• Dimensions (Ø x H): 152 mm x 71.04 mm (6.0" x 2.8")
• Environmental Casing: Weatherproof (IP68); Vandal proof metal casing (IK10)
• Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
