ACTi B82

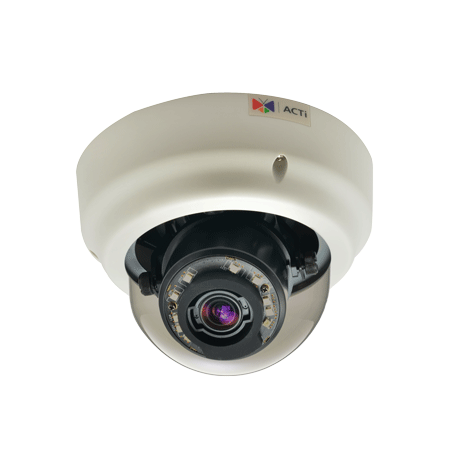

ACTi B82 5MP Zoom Outdoor Dome Network Camera

ACTi

ACTi B82 5MP Zoom Outdoor Dome Network Camera

$752.28
Discontinued
SKU: B82
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: B81

ACTi B82 Features

  • Max Resolution: 2592 x 1944
  • Image Sensor: 1/3.2" Progessive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • IR Illuminators: Yes, Adaptive IR (Object & Zoom Adaptive IR)
  • IR Illuminator Range: 40m
  • Lens Type: Board mount
  • Focal Length: f9-22mm / F1.6-2.3
  • Zoom: 2.4x optical
  • Iris: DC iris
  • Focus: Auto
  • Field of View: Horizontal Viewing Angle: 29.5° ~ 13°
  • Compression Styles: H.264 (Baseline / Main / High profile), MJPEG
  • Frame Rate: 15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
  • WDR technology: Basic WDR (74 dB)
  • Image Settings: White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; User defined text on video; Image flip and mirror
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: Supports two-way audio via audio in/audio out via terminal block
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Sound detection; Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: N/A
  • Users: Software defined
  • On-board Storage: Yes, MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weatherproof (IP67); Vandal proof (IK10)
  • Dimensions: 152.8 mm x 114.5 mm (6.0'' x 4.5'')
  • Weight: 1274 g (2.80 lb)
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power/Consumption: PoE Class 3 IEEE802.3af / 4.8 W (built-in heater and IR on); DC 12V (adapter not included) / 4.2 W (built-in heater and IR on)
  • Warranty: 3 Years
  • What's Included: Camera, mounting screw kit, hexagon screwdriver, drill template, quick installation guide, warranty card, terminal block (for power), terminal block for DI/DO), and terminal block (for Audio In/Out)
