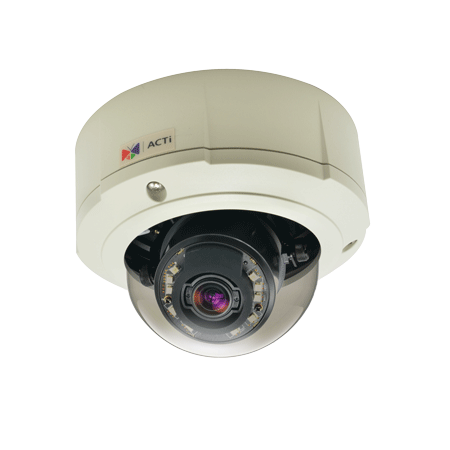

ACTi B84 1.3MP Zoom Outdoor Dome Network Camera
ACTi B84 Features
- Max Resolution: 1920 x 1080
- Image Sensor: 1/3" Progessive Scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.2 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- IR Illuminators: Auto Adaptive IR LED x 10 (850nm)
- IR Illuminator Range: 20m
- Lens Type: Board mount
- Focal Length: f3 - 9 mm / F1.2 - 2.1
- Zoom: 3x optical
- Iris: DC iris
- Focus: Auto
- Field of View: Horizontal Viewing Angle: 90.6°~31.8°; Pan: 0° - 350°; Tilt: 5° - 170° ; Rotate: 0- 350°
- Compression Styles: H.264 HP, MJPEG
- Frame Rate: 30 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- Image Settings: Basic WDR (83.5 dB), White balance: automatic, hold, predefined and manual; Brightness; Contrast; Sharpness; Automatic gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip & mirror
- Privacy Mask: No
- Built-in Microphone: No
- Audio Capabilities: Audio in, Audio out: terminal block
- Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video; Snapshot to FTP server; Activate external device through digital output
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Users: N/A
- On-board Storage: Yes, MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weatherproof (IP66 rated); Vandal proof (IK10); Transparent dome cover
- Dimensions: 152 mm x 114.5 mm (6.0'' x 4.5'')
- Weight: 1258 g (2.77 lb)
- Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 3 IEEE802.3af/ 8.8 W (Heater on); DC 12V/ 7.84 W (Heater on; adapter not included)
- Warranty: 3 Years
