ACTi B910

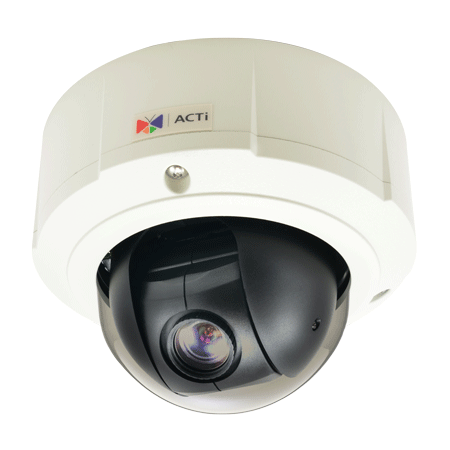

ACTi B910 4MP Mini PTZ Network Camera

ACTi

ACTi B910 4MP Mini PTZ Network Camera

$812.80
Discontinued
SKU: B910
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: Z952

ACTi B910 Features

  • Max Resolution: 2688 (H) x 1520 (V) (4.09 MP)
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0.05 lux at F1.8 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Focal Length: f4.9- 49 mm / F1.8 - 3.0
  • Zoom: 10x optical / Max. 2 secs
  • Pan Range: -175° - 175° (without auto-flip)
  • Tilt Range: 0°~180° (with E-flip)
  • Number of Presets: Remote manual control; 256 preset points; 10 preset tours; Auto scan
  • Iris: DC Iris
  • Focus: Auto focus
  • Field of View: Horizontal Viewing Angle: 54.13° ~ 6.65°
  • Compression Styles: H.264 (Baseline / Main / High profile), MJPEG
  • Frame Rate: 15 fps at 2688 x 1520; 15 fps at 2560 x 1440; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
  • WDR Technology: Superior WDR (110 dB);
  • Image Settings: White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; Digital Noise Reduction; Flickerless; User defined text overlay on video; Image flip and mirror
  • Privacy Mask: Yes, 4 configurable regions for each of 17 preset points
  • Built-in Microphone: No
  • Audio Capabilities: Two Way Audio
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Users: Software Dependent
  • On-board Storage: Yes, MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weatherproof (IP67 rated); Vandal proof (IK10 rated), Transparent dome cover
  • Dimensions: 153 mm x 116 mm (6'' x 4.5'')
  • Weight: 1306 g ( 2.88 lb)
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122 °F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 3 (IEEE802.3af) / 11.2 W (built-in heater and fan on) DC 12V (adapter not included) / 7.8 W (built-in heater and fan on)
  • Warranty: 3 Year
