ACTi B934

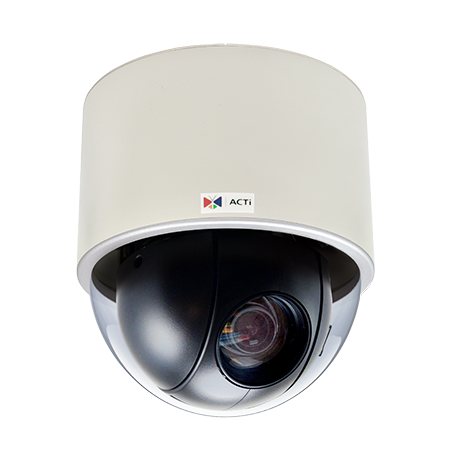

ACTi B934 2MP 30x Zoom Indoor Speed Dome Network Camera

ACTi

ACTi B934 2MP 30x Zoom Indoor Speed Dome Network Camera

$2,475.20 $3,094.00
Save $618.80
SKU: B934
Quantity:
Link to Manufacturer's Page

Contact

ACTi B934 Features

• Device

  • Image Sensor Progressive Scan CMOS
  • Sensor Size 1/2.8''
  • Effective Pixels 1945 (H) x 1097 (V) (2.13 MP)
  • Horizontal Resolution 1450 TVL
  • Day / Night Yes
  • Low Light Sensitivity Superior
  • Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K)
  • Color to B/W Switch ISP based switch, configurable
  • Mechanical IR Cut Filter Yes
  • IR Sensitivity Range 700 -1100nm
  • IR LED No
  • Electronic Shutter 1/5 ~ 1/32,000 sec (50Hz); 1/5 ~ 1/32,000 sec (60Hz)
  • S/N Ratio 56 dB

• Lens

  • Focal Length Zoom, f4.5 - 135mm / F1.6 - 4.4
  • Zoom Ratio 30x optical
  • Zoom Speed 2.4 sec (wide to tele)
  • Iris DC iris
  • Focus Auto focus
  • Mount Type Board Mount
  • Horizontal Viewing Angle 62.4° - 3.5°
  • Vertical Viewing Angle 37.6° - 2°

• PTZ

  • Manual Panning / Tilting Speed 0.32°~54.72°/s; 0.16°~27.36°/s
  • Preset Panning / Tilting Speed 0.16°~720°/s; 0.16°~360°/s
  • Panning Range 360° Endless
  • Tilting Range 0° - 180°
  • Control Remote manual control; 256 preset points; 10 preset tours; Auto scan
  • Preset Panning / Tilting Accuracy ± 0.265° / ± 0.265°
  • Absolute Positon Yes
  • Protocol ACTi URL command, Sony VISCA, Pelco D, Pelco P

• Video

  • Compression H.264 (Baseline / Main / High profile), MJPEG
  • Max. Frame Rate vs. Resolution 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
  • Multi-Streaming Simultaneous tirple streams based on three configurations
  • Bit Rate 128 Kbps - 12 Mbps (per stream)
  • Bit Rate Mode Constant, Variable
  • Image Enhancement Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Digital image stabilizer; Shock Detection; Text Overlay: User defined text on video; Image Orientation: Image flip and mirror
  • Privacy Mask 20 configurable regions
  • Built-in Analytics Object Based Motion Detection, Tamper, Shock Detection, PTZ Auto Tracking, Line Crossing, Missing Object, Unattended Object, Loitering

• Audio

  • Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
  • Audio-In 3.5mm phone jack
  • Audio-Out 3.5mm phone jack

• Network

  • Protocol & Service IPv4/v6,TCP, UDP, DHCP,PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP,SMTP, FTP, IGMP, ICMP,ARP,Bonjour, UPnP, QoS,SNMP, IEEE802.1X
  • Ethernet Port 1, Ethernet (10/100Base-T), RJ-45 connector
  • Security IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

• Alarm

  • Alarm Trigger Video motion detection (10 regions), External device through digital input, Sound detection
  • Alarm Response Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots;
  • Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output

• Interface

  • Digital Input 2, Terminal block
  • Digital Output 2, Terminal block
  • Local Storage MicroSDHC/MicroSDXC memory card slot (card not included)

• General

  • Power Source / Consumption High PoE (IEEE802.3at) / 12.32 W (without DI/DO); DC 12V / 10.8 W (without DI/DO)
  • Weight 1.57 kg (3.47 lb)
  • Dimensions (Φ x H) 150mm x 170 mm (5.9'' x 6.7'')
  • Bundled Accessories Surface mount, Power adapter
  • Environmental Casing Vandal resistant (IK09)
  • Mount Type Surface, Flush, Pendant, Wall, Corner, Pole
  • Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Temperature -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity 10% ~ 85% RH
