ACTi B945

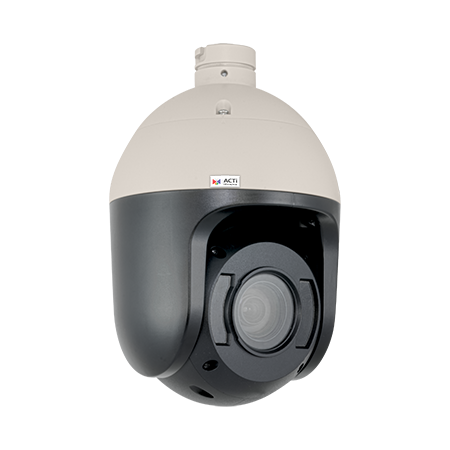

ACTi B945 2MP 20x IR Zoom Outdoor Speed Dome Network Camera

ACTi

ACTi B945 2MP 20x IR Zoom Outdoor Speed Dome Network Camera

$2,395.00
Discontinued
SKU: B945
Link to Manufacturer's Page

Contact

Special Order; lead time is 2-4 weeks.

ACTi B945 Features:

  • Image Sensor: 1/2/8" Progressive Scan CMOS
  • Effective Pixels: 1944 (H) x 1224 (V) (2.38 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Superior
  • Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux at F1.6 (IR LED On)
  • Mechanical IR Cut Filter: Yes
  • IR LED: Adaptive IR LED x 8 (850nm)
  • IR Working Distance: 60 - 100 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Focal Length: Zoom, f4.7 - 94 mm / F1.6 - 3.5
  • Zoom Ratio / Speed: 20x optical / 2.7 sec (tele to wide)
  • Iris: DC iris
  • Focus: Auto focus
  • Horizontal Viewing Angle: 60.8° - 3.4°
  • Panning Range: 360° Endless
  • Tilting Range: -20° ~ 200°
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
  • Image Enhancement: Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; 2D+3D digital noise reduction; Flickerless; Defogging; User defined text on video; Image flip, mirror, rotation
  • Privacy Mask: 20 configurable regions
  • Built-in Analytics: Motion Detection, Tamper, Shock Detection, PTZ Auto Tracking, Digital Image Stabilizer, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object
  • Audio: 2-way (Mic-in, Line-in, Line-out)
  • Audio-In / Audio-Out: Cable with 3.5mm phone jack
  • Security: IP address filtering; HTTPS encryption; Password protected user level; Anonymous login; IEEE 802.1X network access control
  • Alarm Trigger: Video motion detection (10 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Power Source: High PoE (IEEE802.3at) 50W / AC 24V 62W (With heater controlled by thermostat)
  • Weight: 3112 g (6.86 lb)
  • Dimensions (Φ x H): 170 mm x 260 mm (6.69" x 10.23")
  • Environmental Casing: Weatherproof (IP66); Vandal proof metal casing (IK10); Scratch-resistant and water-repellent lens glass
  • Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F )
  • Operating Humidity: 10% ~ 85% RH, Built-in dehumidfier
