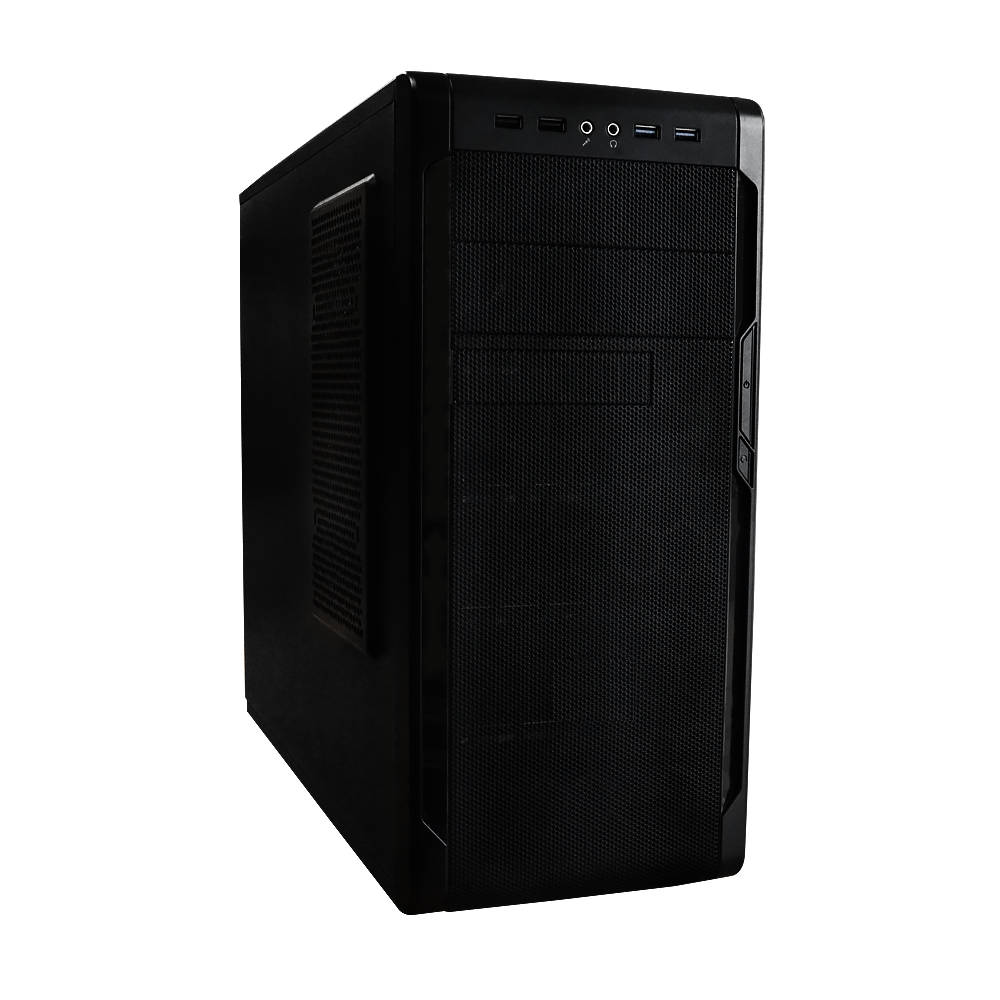

- 4-bay Tower Standalone NVR
- Maximum Number of Video Devices: 100 (Free License: 32)
- Intel Pentium Gold G7400, 16GB
- Non-ACTi camera support via licensed Camera Device Pack
Device
| Product Type | Standalone NVR |
| Maximum Number of Video Devices | 100 |
| Maximum Number of Clients | Local: 1, Remote: 4 |
Hardware
| CPU | Intel Pentium Gold G7400 |
| RAM | 16GB, DDR4 |
License
| License required | Yes |
| Free License | 32 |
Live View
| Display Layout Mode | Local: 1, 3, 4, 5, 6, 8, 9, 10, 12, 16 Remote (IE client): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64 Remote (Lite web client): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16 Remote (Workstation): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, 81, 100 |
| Fisheye Dewarping | Yes |
| Local Live View performance | 16ch (Max. 3Mbps at 1920x1080) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full |
| Instant Playback | Instant Playback in live view window |
Map
| e-Map | Yes |
| Layout | Area maps with camera icons, small live view windows, hyperlinked |
| Setup | e-Map image upload, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning |
Video
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Hardware Accelerated Decoding | Yes (for workstation PC only), H.264, H.264 |
| Built-in Analytics | Visual Tracking |
Audio
| Audio Type | 2-way, Line-in, Line-out |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi |
| Ethernet Port | 1 x Ethernet (1000 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 384 Mbps |
Recording
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Event Speed-up Recording | Yes |
| Dual Stream Management | Yes |
| Maximum Recording Throughput | 384 Mbps |
Search & Playback
| Synchronized Playback | 16 channels (Local) |
System
| Server Operating System | Windows 10 IoT |
| USB | 6-Port USB 2.0, 2-Port USB 3.0, 2-Port USB 3.2 |
Storage
| System Drive | M.2 SSD, 250GB |
| Storage Bay | SATA, Max. 4 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 22TB x4 |
| RAID Level | Software RAID 0, 1, 5, 10 |
Interface
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Local Display Interface | HDMI x 2, Display Port x 1 |
General
| Power Source | AC 100-240V |
| Power Supply | 400W |
| Weight | 5210g (11.49lb) |
| Dimensions | (W x H x D): 190mm x 426mm x 491.5mm (7.48" x 16.77" x 19.35") |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% - 85% RH |
| Color | Black |
