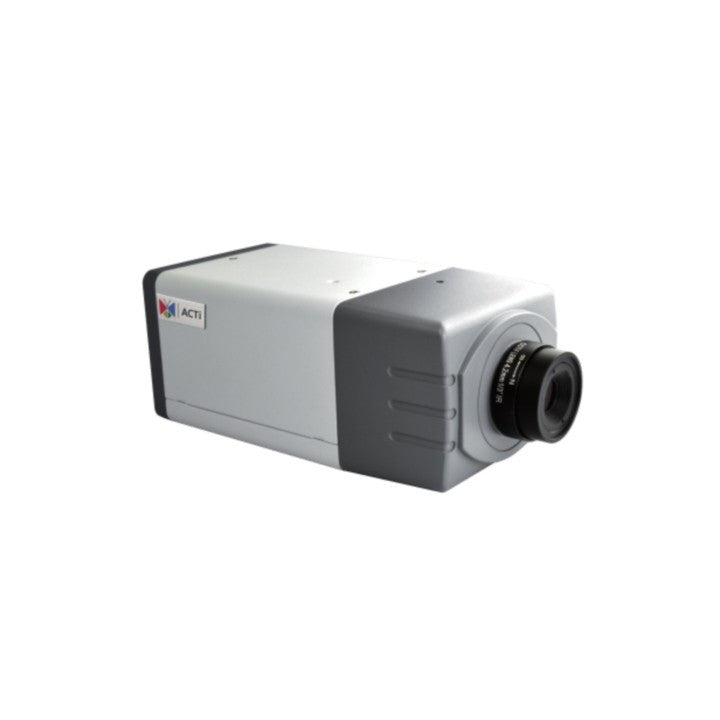

ACTi D21F 1MP Fixed Box Network Camera

Discontinued.

ACTi D21F Features

• Max Resolution: 1280 x 720
• Image Sensor: 1/4" Progressive Scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0.05 lux at F1.8 (30 IRE, 2400°K)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed focal CS mount
• Focal Length: f4.2 mm/ F1.8
• Zoom: N/A
• Iris: Fixed
• Focus: Manual
• Field of View: 53.8° Horizontal
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
• WDR Technology: No
• Image Settings: White Balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless, User defined text on video, Image flip and mirror
• Privacy Mask: Yes, 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Video motion detection (3 regions), Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
• ONVIF: Yes
• Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: 67.05mm x 65.02mm x 169.89mm (2.6" x 2.6" x 6.7")
• Weight: 418.5 g (0.92lb)
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / 2.436W
• Warranty: 1 Year
• Please note: Also available in a vari-focal lens version as the D21V
