ACTi D22FA

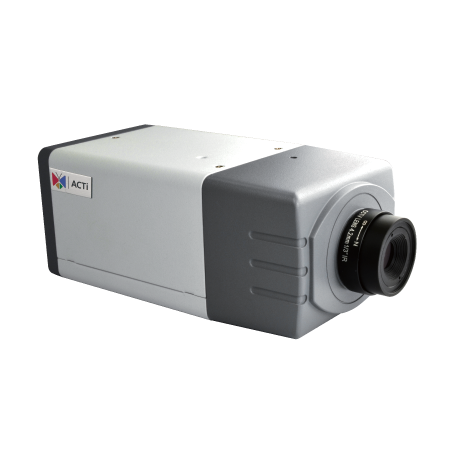

ACTi D22FA 5MP Fixed Box Network Camera

ACTi

ACTi D22FA 5MP Fixed Box Network Camera

Sale price$286.00
Discontinued
SKU: D22FA

Discontinued; replaced by the E22VA.

ACTi D22FA Features

  • Max Resolution: 2592 x 1944
  • Image Sensor: 1/3.2" Progressive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0.05 lux at F2.0 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed Focal CS mount
  • Focal Length: f2.93 mm/ F2.0
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Manual
  • Field of View: 81.6° Horizontal
  • Compression Styles: H.264 HP, MJPEG
  • Frame Rate: 15fps at 2592x1944; 15 fps at 2048x1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps 320 x 240
  • WDR Technology: No
  • Image Settings: White Balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text on video; Image flip and mirror
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: Supports two-way audio with terminal block input/output
  • Alarm/Event Management: Video motion detection (3 regions), Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
  • ONVIF: Yes
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: 67.05 mm x 65.02 mm x 145.13mm (2.6" x 2.6" x 5.7")
  • Weight: 410.5 g (0.905lb)
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 4.002W
  • Warranty: 1 Year
  • Please note: Also available in a vari-focal lens version in the D22VA
