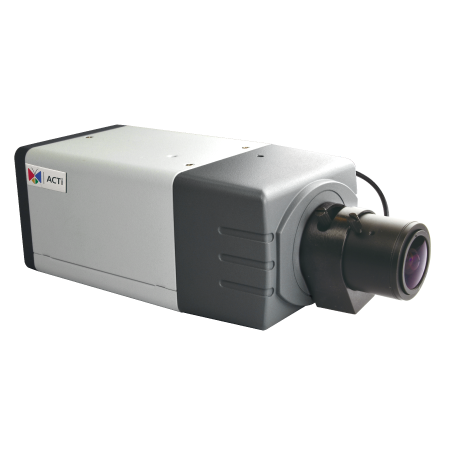

ACTi D22VA 5MP Vari-focal Box Network Camera

ACTi D22VA Features

• Max Resolution: 2592 x 1944
• Image Sensor: 1/3.2" Progressive Scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal CS mount
• Focal Length: f2.8-12 mm / F1.4
• Zoom: N/A
• Iris: Fixed
• Focus: Manual
• Field of View: 70.9° - 29.2° Horizontal
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 15fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps 320 x 240
• WDR Technology: No
• Image Settings: White Balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text on video; Image flip and mirror
• Privacy Mask: Yes, 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with terminal block input/output
• Alarm/Event Management: Video motion detection (3 regions), Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
• ONVIF: Yes
• Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
• Users: Software defined
• On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: 67.05 mm x 65.02 mm x 169.43mm (2.6" x 2.6" x 6.7")
• Weight: 438 g (0.965lb)
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / 4.002W
• Warranty: 1 Year
• Please note: Also available in a fixed lens version in the D22FA
