ACTi E14
ACTi E14 dimensions & diagram

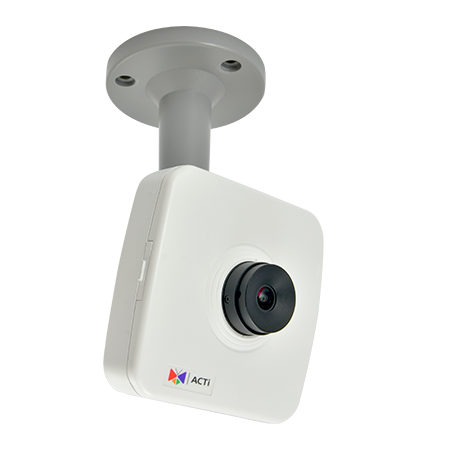

ACTi E14 10MP Fixed Cube Network Camera

ACTi

ACTi E14 10MP Fixed Cube Network Camera

Sale price$305.33 Regular price$352.00
Save $46.67
SKU: E14
Quantity:

Contact

ACTi E14 Features:

  • Max Resolution: 3648 x 2736
  • Image Sensor: 1/2.3" Progressive Scan CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400 °K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed CS Mount
  • Focal Length: f3.6 mm / F1.8
  • Zoom: No
  • Iris: Fixed
  • Focus: Manual
  • Field of View: Horizontal: 99˚
  • Compression Styles: H.264 HP, MJPEG
  • Frame Rate: 6 fps at 3648 x 2736; 6 fps at 3648 x 2160; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
  • WDR Technology: Basic WDR (70 dB)
  • Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flickerless; Image flip and mirror; User defined text overlay on video
  • Privacy Mask: 4 configurable regions
  • Built-in Microphone: Yes
  • Audio Capabilities: Two-Way Audio via 3.5mm phone jack
  • Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 96 mm x 96 mm x 45 mm (3.8" x 3.8" x 1.8")
  • Weight: 376 g (0.829 lb)
  • Operating Temperature: -10 °C ~ 45 °C (14 °F ~ 113 °F)
  • Operating Humidity: 10% ~ 85% RH
  • Power/Consumption: PoE Class 2 (IEEE802.3af) / 3.84W
  • Warranty: 3 Years
  • What's Included: Camera, camera stand, screw & anchor pack, warranty card, quick installation guide
