ACTi E210

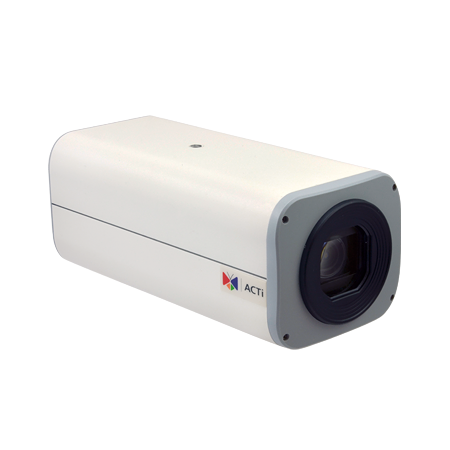

ACTi E210 10MP 4.3x Zoom Box Network Camera

ACTi

ACTi E210 10MP 4.3x Zoom Box Network Camera

$536.00
Discontinued
SKU: E210
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: E271, A28

ACTi E210 Features

  • Image Sensor: 1/2.3" Progressive Scan CMOS
  • Effective Pixels: 3856 (H) x 2764 (V) (10.66 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Standard
  • Minimum Illumination: Color: 0.1 lux at F2.8 (30 IRE, 2400°K); B/W: 0.05 lux at F2.8 (30 IRE, 2400°K)
  • Mechanical IR Cut Filter: Yes
  • IR LED: No
  • Focal Length / Aperture: Zoom, f3.1 - 13.3mm / F1.4 - 13.3
  • Zoom Ratio /Speed: 4.3x optical / 3 sec (wide to tele)
  • Iris: P-iris
  • Focus: Auto focus
  • Lens Mount: Board mount
  • Horizontal Viewing Angle: 109° ~ 26.4°
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 7 fps at 3648 x 2736; 7 fps at 3648 x 2160; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
  • Image Enhancement Basic WDR (70 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text on video; Image flip and mirror; Privacy Mask 4 Configurable regions
  • Audio-In: Terminal block
  • Audio-Out: Terminal block
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 12 W (built-in heater on)
  • Weight: 661 g (1.457 lb)
  • Dimensions (W x H x D): 71.4 mm x 80.6 mm x 177.26 mm (2.81" x 3.17" x 6.97")
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
