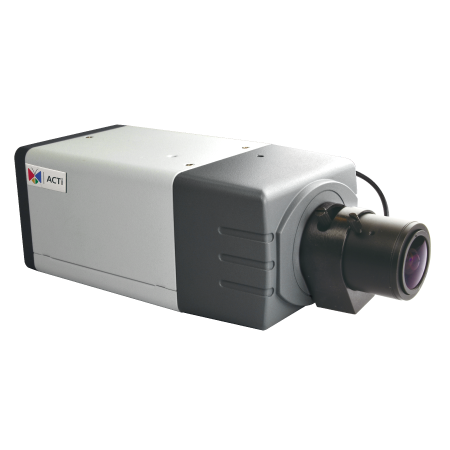

ACTi E222 Features
- Max Resolution: 1944 (H) x 1224 (V) (2.38 MP)
- Image Sensor: 1/2.9" Progressive Scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Vari-focal board mount
- Focal Length: f2.8 - 12mm / F1.4
- Zoom: N/A
- Iris: DC
- Focus: Manual
- Field of View: 92.4° ~ 37.2° Horizontal
- Compression Styles: H.264 (Baseline / Main / High profile), MJPEG
- Frame Rate: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
- WDR Technology: Yes, Extreme WDR (145 dB)
- Image Settings: White balance: automatic, hold and manual; Brightness; Defogging; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; User defined text on vide; Image flip and mirror
- Privacy Mask: Yes, 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: Supports two-way audio with terminal block input/output
- Alarm/Event Management: Video motion detection (10 regions); External device through digital input; Sound detection; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Save video or snapshot to FTP server; Activate external device through digital output
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Users: Software defined
- On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: 67 mm x 65 mm x 145 mm (2.6" x 2.5" x 5.6")
- Weight: 450 g (0.992 lb)
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Operating Humidity: 10% ~ 85% RH
- Power/Comsumption: PoE Class 3 (IEEE802.3af) / 7W
- Warranty: 3 Years
