ACTi E22V
ACTi E22F & ACTi E22V
ACTi E22V 5MP WDR Vari-focal Box IP Network Camera

ACTi

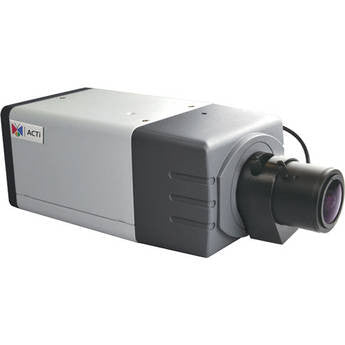

ACTi E22V 5MP WDR Vari-focal Box IP Network Camera

$0.00
Discontinued
SKU: E22V
Link to Manufacturer's Page

Contact

Discontinued; replaced by the E22VA.

ACTi E22V Features

  • Max Resolution: 2592 x 1944
  • Image Sensor: 1/3.2" Progressive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed focal or Vari-focal
  • Focal Length: f2.8-12 mm/F1.4
  • Zoom: N/A
  • Iris: DC
  • Focus: Manual
  • Field of View: 70.9° - 29.2°
  • Compression Styles: H.264 HP, MJPEG
  • Frame Rate: 15fps at 2592x1944; 15 fps at 2048x1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
  • Image Settings: Basic WDR; White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless, User defined text on video, Image flip and mirror
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 67.05 mm x 65.02 mm x 169.43mm (2.6" x 2.6" x 6.7")
  • Weight: 438 g (0.965lb)
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 4.002W
  • Warranty: 3 Years
