ACTi E23B

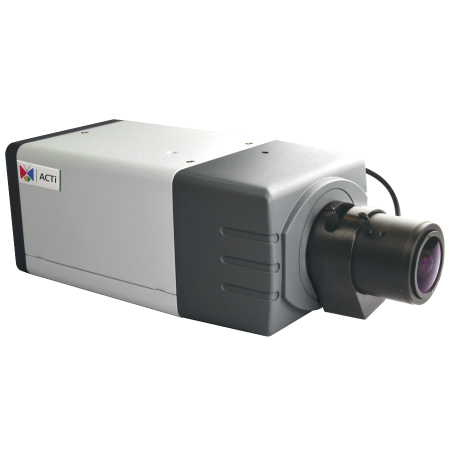

ACTi E23B 2MP WDR Vari-focal Box Network Camera

ACTi

ACTi E23B 2MP WDR Vari-focal Box Network Camera

Sale price$391.20
Discontinued
SKU: E23B

Contact

ACTi E23B Features

  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.8" Progressive Scan CMOS with Superior Low Light Sensitivity
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal CS-mount
  • Focal Length: f2.8 - 12 mm / F1.4
  • Zoom: No
  • Iris: DC
  • Focus: Manual
  • Field of View: 88.4° - 35.7° Horizontally
  • Compression Styles: H.264 (Baseline / Main / High profile), MJPEG
  • Frame Rate: 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
  • WDR Technology: Basic WDR (70dB)
  • Image Settings: White Balance: automatic, hold and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless, User defined text on video, Image flip and mirror
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: Supports two-way audio with terminal block input/output
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Sound detection; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server, Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: 67 mm x 65 mm x 170 mm (2.6" x 2.6" x 6.7")
  • Weight: 453 g (1.00 lb)
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 4.32W
  • Warranty: 3 Years
