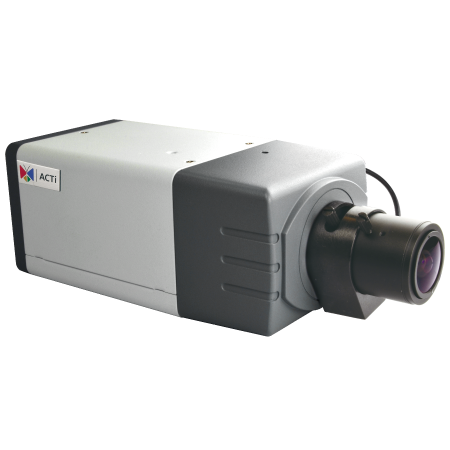

ACTi E271 10MP Vari-focal Box Network Camera

Discontinued - Recommended Replacement: E43B

ACTi E271 Features

• Max Resolution: 3648 x 2736
• Image Sensor: 1/2.3" Progressive Scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal CS mount (interchangeable lens)
• Focal Length: f3-13mm / F1.4
• Zoom: N/A
• Iris: DC iris
• Focus: Manual
• Field of View: 100.5°-26.2° Horizontal
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 6 fps at 3648 x 2736, 6 fps at 3648 x 2160, 6 fps at 2592 x 1944, 6 fps at 2048 x 1536, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 640 x 480, 15 fps at 320 x 240
• WDR Technology: Basic WDR (65.2 dB)
• Image Settings: White Balance: automatic, hold and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless, User defined text on video, Image flip and mirror
• Privacy Mask: 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: Audio-in and Audio-out with terminal blocks
• Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video, Snapshot to FTP server; Activate external device through digital output
• ONVIF: Yes
• Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
• Users: Software defined
• On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: (W x H x D) 19.0mm x 6.7mm x 6.5mm (7.5" x 2.6" x 2.6")
• Weight: 486g (1.071 lb)
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / 4.32 W
• Warranty: 3 Years
