Discontinued - Recommended Replacement: E33A, Z32, A310

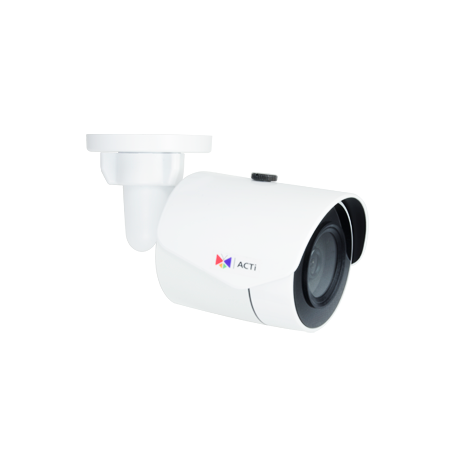

ACTi E38 Features:
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Day / Night: Yes
- Effective Pixels: 1944 (H) x 1224 (V) (2.38MP)
- Low Light Sensitivity: Superior
- Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- Mechanical IR Cut Filter: Yes
- IR LED: Adaptive IR LED x 12 (850 nm)
- IR Working Distance: 30 m (0 Lux, 30 IRE, Gain 255, Auto shutter mode)
- Focal Length / Aperture: Fixed focal, f2.93 mm / F2.0
- Iris: Fixed iris
- Focus: Fixed focus
- Lens Mount: Board mount
- Horizontal Viewing Angle: 99°
- Compression: H.264 (Baseline / Main / High Profile); MJPEG
- Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
- Image Enhancement Extreme WDR (145 dB); White balance: automatic, hold, and manual; Brightness; Contrast; **Defogging; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Digital image stabilizer; Privacy Mask 4 configurable regions; User defined text on video; Image flip, mirror and rotation (90°)
- Built-in Analytics: Motion Detection, Tamper, Digital Image Stabilizer, **Line Crossing, **Enter Area, **Missing Object, **Unattended Object (**Will be available in the future)
- Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
- Alarm Trigger: Video motion detection (10 regions)
- Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server
- Local Storage: **MicroSDHC memory card slot (card not included)
- Power Source / Consumption: PoE Class 2 (IEEE802.3af) / 4.34W
- Weight: 362 g (0.80 lb)
- Dimensions (Ø x L): 67.8 mm x 146.43 mm (2.669” x 5.773”)
- Environmental Casing: Weatherproof (IP67); Vandal proof metal casing (IK10)
- Operating Temperature -40 °C ~ 50 °C (-40 °F ~ 122 °F)
