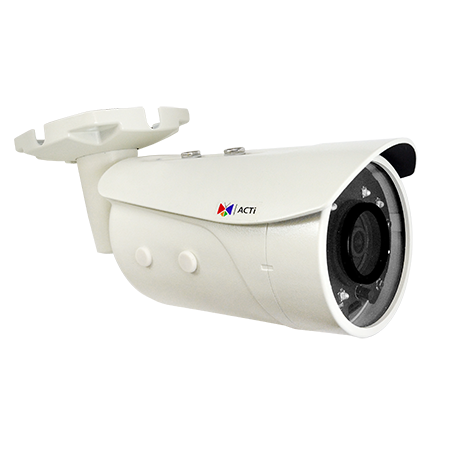

ACTi E39 2MP Video Analytics Bullet Network Camera

ACTi E39 Features:

Device

• Product Type Bullet
• Maximum Resolution 2MP
• Application Environment Outdoor
• Image Sensor Progressive Scan CMOS
• Sensor Size 1/2.8 "
• Effective Pixels 1945(H) X 1097(V) (2.13 MP)
• Day / Night Yes
• Low Light Sensitivity Extreme
• Minimum Illumination Color: 0.1 lux at F1.85 (30 IRE, 2400 K); B/W: 0 lux at F1.85 (IR LED on)
• Color to B/W Switch ISP based switch, configurable
• Mechanical IR Cut Filter Yes
• IR Sensitivity Range 700-1100nm
• IR LED Adaptive IR LED x 8 (850 nm)
• IR Working Distance 30m
• Electronic Shutter 1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode)
• Horizontal Resolution (TV Lines) 1100 TVL
• S/N Ratio 56 dB

Lens

• Focal Length Fixed focal, f3.6mm
• Aperture F1.85
• Iris Fixed iris
• Focus Fixed focus
• Lens Mount Board mount
• Horizontal Viewing Angle 90.6°
• Vertical Viewing Angle 50.5°

Video

• Compression H.264 (Baseline/ Main/ High profile), MJPEG
• Maximum Frame Rate vs. Resolution 60 fps at 1920 x 1080, 60 fps at 1280 x 720, 30 fps at 640 x 480, 30 fps at 320 x 240
• Multi-Streaming Simultaneous triple streams based on three configurations
• Bit Rate 128Kbps - 12Mbps (per stream)
• Bit Rate Mode Constant, Variable
• Wide Dynamic Range Extreme WDR (145 dB)
• Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Digital Image Stabilizer, Defogging
• Digital Noise Reduction 2D + 3D DNR
• Privacy Mask 4 configurable regions
• Text Overlay Yes
• On-Screen Graphics Yes
• Built-in Analytics Face Detection, Object Based Motion Detection, Tampering Detection, Shock Detection, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Object Loitering Detection
• VMS-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
• Image Orientation Mirror, Flip, Rotation
• IVS performance Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project.

Audio

• Audio Type 2-way, Built-in Microphone, Mic-in, Line-in, Line-out
• Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Network

• Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
• Ethernet Port 1 x RJ-45 connector
• Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Video Analytics

• Analysis Source Type Video
• Metadata Accuracy Standard

Event

• Event Trigger Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection,
• Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration

• Unified Solution Fully compatible with ACTi software
• GPS Position Manual setting
• ONVIF Compliant Yes, Profile S, Profile G
• Web Browser IE 11
• Auto Firmware Upgrade Yes

Interface

• Audio Interface Built-in microphone, Cable with 3.5mm Phone Jack
• Local Storage MicroSDHC, MicroSDXC memory card slot (card not included)
• Digital Input/Output 1/1 (Cable with Terminal block)

General

• Power Source DC 12V, PoE Class 3 (IEEE802.3af)
• Power Consumption 12.95 W (PoE)
• Weight 1247g (2.749lb)
• Dimensions (Ø x L): 80mm x 236mm (3.15" x 9.29")
• Environmental Casing Weatherproof (IP68), Vandal proof metal casing (IK10), Built-in dehumidifier
• Bundled Accessories Integrated bracket
• Mount Type Wall Mount, Ceiling Bracket, Pole Mount
• Dehumidifier Yes
• Starting Temperature -40°C ~ 50°C (-40°F ~ 122°F)
• Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
• Operating Humidity 10% - 85% RH
• Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP68, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter)
• Warranty 3 Year(s)
