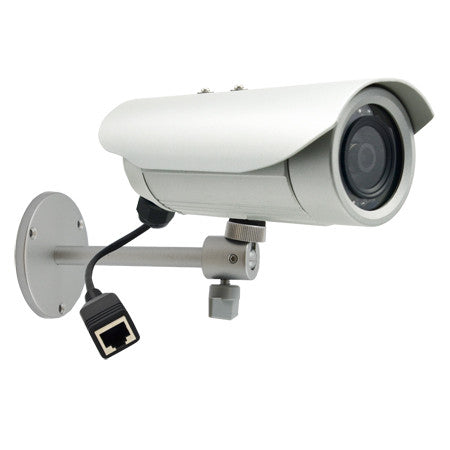

ACTi E42A 3MP WDR Vari-focal Bullet Camera

Discontinued; replaced by the E42B

ACTi E42A Features

• Max Resolution: 2048 x 1536
• Image Sensor: 1/3.2" Progressive Scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 15 m (0 lux, 30 IRE, Max exposure gain)
• Lens Type: Vari-focal board mount
• Focal Length: f2.8 ~ 12 mm / F1.4
• Zoom: N/A
• Iris: Fixed
• Focus: Manual
• Field of View: 70.5° ~ 28.2°
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
• WDR Technology: Basic WDR (74 dB)
• Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless, Text Overlay, Image flip and mirror
• Privacy Mask: 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Video motion detection (3 regions), Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video; Snapshot to FTP server
• ONVIF: Yes
• Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
• Users: Software defined
• On-board Storage: No
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weatherproof (IP66 rated); Vandal proof metal casing (IK10)
• Dimensions: 77 mm x 218 mm (3.03" x 8.58")
• Weight: 595g (1.31 lb)
• Operating Temperature: -40 °C ~ 50 °C (-40 °F ~ 122 °F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / 4.61 W (IR on)
• Warranty: 3 Years
