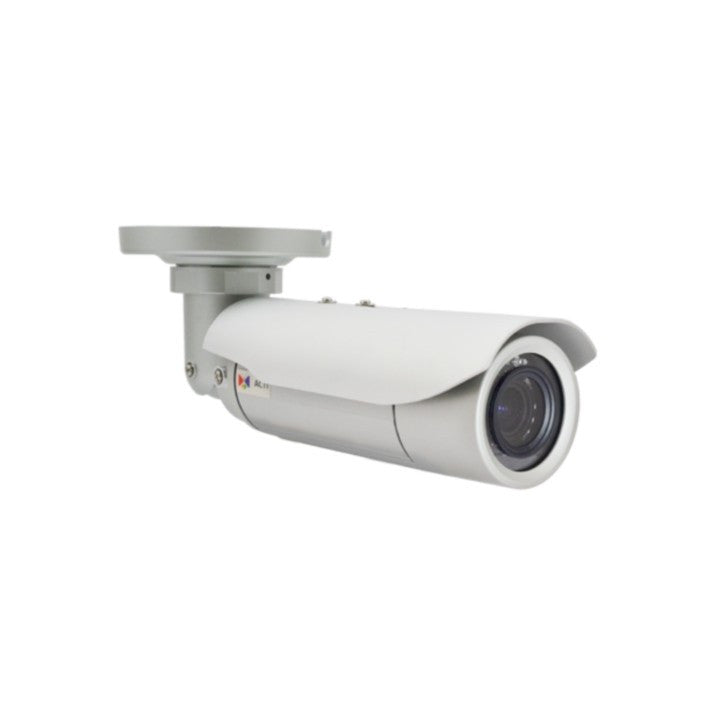

ACTi E45A 1 Megapixel Bullet Network Camera

Discontinued; replaced by the E46A, A41, A42.

ACTi E45A Features:

• Resolution: 1280 x 720,
• Image Sensor: Progressive Scan CMOS
• Sensor Size: 1/3" (4.5 x 3.4 mm)
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
• IR Illuminators: Yes, IR LED x 15 (850 nm)
• IR Illuminator Range: 15 m (0 lux, 30 IRE, Max Exposure Gain)
• Lens Type: Vari-Focal
• Focal Length: f3.3-12mm
• Zoom: N/A
• Iris: Fixed
• Focus: Manual
• Field of View: Horizontal Viewing Angle: 78.1˚~21.9˚
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 30 fps at 1280 x 720; 30 fps at 640 x 480
• Image Settings: Superior WDR; White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless: Image flip and mirror
• Privacy Mask: Yes, 4 configurable regions;
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with terminal block input/output
• Alarm/Event Management: Video Motion Detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
• ONVIF: Yes
• Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Users: N/A
• On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weatherproof (IP66 rated) & IK10 Vandal-proof
• Dimensions: 66 mm x 291 mm (2.6" x 11.5")
• Weight: 651g (1.44 lb)
• Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / 4.9W (IR on)
• Warranty: Two Years
