Discontinued, replaced by the E61A.

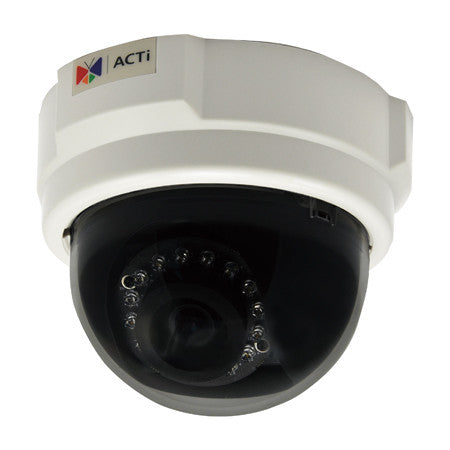

ACTi E61 Features
- Max Resolution: 1280 x 720
- Image Sensor: 1/4" Progressive Scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- IR Illuminators: Yes
- IR Illuminator Range: 15 meters
- Lens Type: Vari Focal board mount
- Focal Length: f2.8 - 12 mm/F1.4
- Zoom: N/A
- Iris: Fixed
- Focus: Manual
- Field of View: 59.8° - 24.7°
- Compression Styles: H.264, MJPEG
- Frame Rate: 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- WDR Technology: Basic WDR (62 dB)
- Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast;Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip & mirror
- Privacy Mask: Yes, 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Users: N/A
- On-board Storage: N/A
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: 146 mm x 113.9 mm (5.8" x 4.5")
- Weight: 503 g (1.11 lb)
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 2 (IEEE802.3af) / 4.22 W (IR on)
- Warranty: Two Years
