ACTi E610

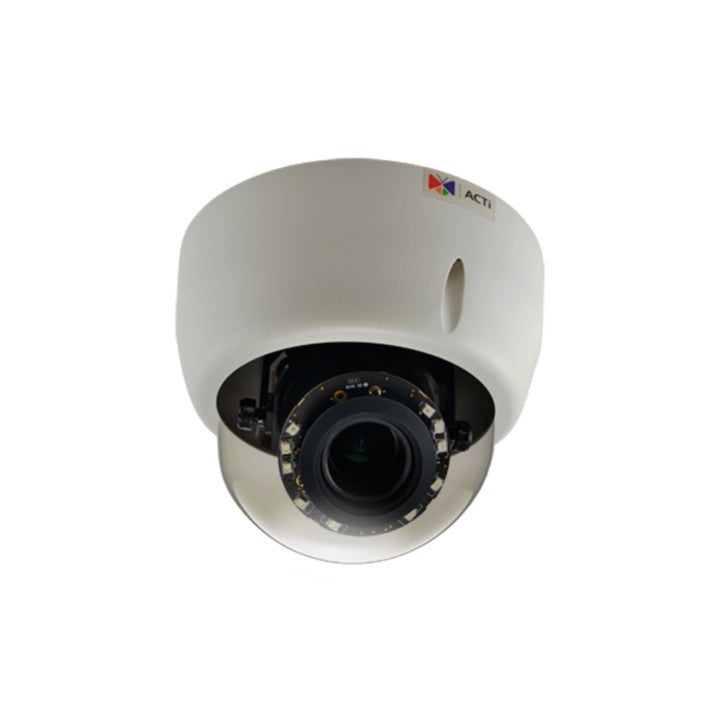

ACTi E610 10 Megapixel Indoor Dome Network Camera

ACTi

ACTi E610 10 Megapixel Indoor Dome Network Camera

$575.00
Discontinued
SKU: E610
Link to Manufacturer's Page

Contact

ACTi E610 Features

  • Max Resolution: 3648 x 2736
  • Image Sensor: 1/2.3" Progressive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux, B/W: 0 lux (IR LED on) @ F1.4
  • IR Illuminators: Yes, Adaptive IR LED x 10
  • IR Illuminator Range: 15m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Lens Type: Vari-focal, Board mount
  • Focal Length: f3.1-13.3mm / F1.4
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Manual
  • Field of View: Horizontal: 25.8° ~ 100.5°; (Pan: 0°-350°, Tilt: 5°-170°, Rotate: 0°-350°)
  • Compression Styles: H.264 HP, MJPEG
  • Frame Rate: 6 fps at 3648 x 2736; 6 fps at 3648 x 2160; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
  • WDR Technology: Basic WDR (65.2 dB)
  • Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip and mirror
  • Privacy Mask: 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: Audio-in and Audio-out with terminal blocks
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Vandal Resistant (IK09 rated)
  • Dimensions: (Ø x H) 146 mm x 123.5 mm (5.7'' x 4.9'')
  • Weight: 747 g (1.647 lb)
  • Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 5.28W (IR on)
  • Warranty: 3 Years
