ACTi E621

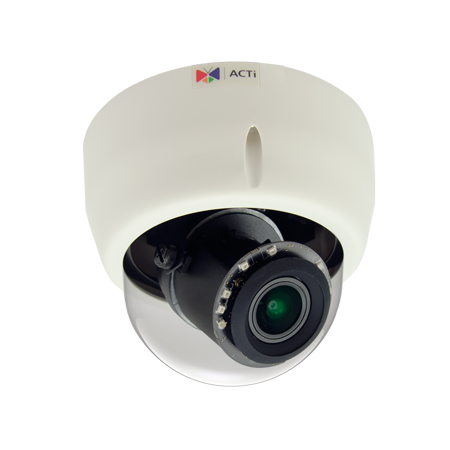

ACTi E621 1.3MP 4.3x Zoom Indoor Dome Network Camera

ACTi

ACTi E621 1.3MP 4.3x Zoom Indoor Dome Network Camera

Sale price$455.00
Discontinued
SKU: E621

Contact

Discontinued; replaced by the B63, Q61, A81, A82, A83, A85

ACTi E621 Features:

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Effective Pixels: 2048 (H) x 1536 (V) (3.15 MP)
  • Day / Night: Yes
  • Low Light Sensitvity: Standard
  • Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux (IR LED on)
  • Mechanical IR Cut Filter: Yes
  • IR LED: Adaptive IR LED (Object & Zoom Adaptive IR) x 10 (850 nm)
  • IR Working Distance: 30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Focal Length / Aperture: Zoom, f3.1 - 13.3mm / F1.4 - 4.0
  • Zoom Ratio / Speed: 4.3x optical / 3 sec (1x to 4.3x)
  • Iris: P-iris
  • Focus: Auto focus
  • Lens Mount: Board mount
  • Horizontal Viewing Angle: 64.4° ~ 26.4°
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 30 fps at 1280 x 960; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
  • Image Enhancement: Superior WDR (110 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerles; Privacy Mask 4 configurable regions; Image flip and mirror
  • Audio-In: Terminal block
  • Audio-Out: Terminal block
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 2 (IEEE802.3af) / 7.84 W (built-in heater and IR on)
  • Weight: 576 g (1.667 lb)
  • Dimensions (Ø x H): 146 mm x 123.5 mm (5.7'' x 5.0'')
  • Environmental Casing: Vandal proof (IK09); Transparent dome cover
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
