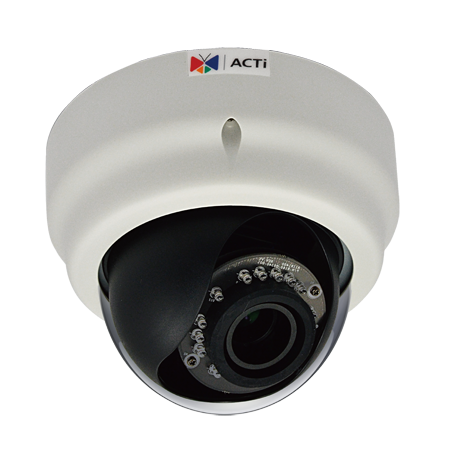

ACTi E63A 5MP Varifocal IR WDR Indoor Dome Network Camera

Discontinued - Recommended Replacement: E83A, B61

ACTi E63A Features

• Max Resolution: 2592 x 1944
• Image Sensor: Progressive Scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 15 meters
• Lens Type: Varifocal board mount
• Focal Length: f2.8 - 12 mm / F1.4
• Zoom: N/A
• Iris: Fixed
• Focus: Manual
• Field of View: Horizontal: 66.6° - 28.9°; Pan: 0° - 350°; Tilt: 17° - 163°; Rotate: 0° - 350°
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
• WDR Technology: Basic WDR (69 dB)
• Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip & mirror
• Privacy Mask: Yes, 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with terminal block input/output
• Alarm/Event Management: Video motion detection (3 regions), Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP
• ONVIF: Yes
• Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
• Users: N/A
• On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: Vandal-resistant (IK09 rated)
• Dimensions: 146 mm x 113.9 mm (5.8" x 4.5")
• Weight: 503 g (1.11 lb)
• Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / 5.37 W (IR on)
• Warranty: Two Years
